|Place of Origin:||China|
|Brand Name:||KRIPAL, MANLAKIS|
|Model Number:||UKS2-A series|
|Minimum Order Quantity:||100 pcs|
|Packaging Details:||Standard Package|
|Delivery Time:||20 days and depends on ordering quantity|
|Payment Terms:||T/T, L/C|
|Supply Ability:||50000 pcs per month|
|Material:||NYLON PA6, PC, Copper||IP Protection:||IP44|
|Current Range:||16A Mpere||Earth Direction:||4 H|
Industrial Sockets And Plugs,

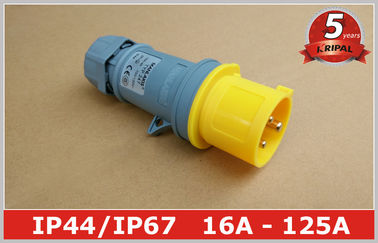

Weatherproof 110v 4h Industrial Plugs Male Socket 2P+E , Heavy Duty
KRIPAL have further improved the performance and design of their wide range of industrial plugs sockets that comply with IEC309 standard. Special attention has been paid to the use of isolating materials and the treatment of metal components.
The outstanding mechanical characteristics of IEC309 Series plugs and sockets and their ability to withstand weathering and chemicals make them safe and reliable even in the most severe environmental conditions.
A high quality, industrial grade 16 amp 110v IP44 rated splash proof plug connector with weatherproof cable gland. Manufactured from heavy duty durable plastic for site and industrial use, also ideal for running power from generators or on building sites.
No. of poles
Conductor cross-sectional area (mm2)
NYLON PA6, PC, copper
Protective extra-low voltage is a preventive measure for use under extreme conditions, the rated voltage (AC) is limited by max. 50V.
Special working conditions (conductive environment e.g. in or on boilers, pipelines, containers, metal frames or limited freedom of motion) require the use of extra-low voltage plugs and sockets.
Our plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:
· excellent impact resistance combined with high rigidity and solidity,
· high thermal stability (self-extinguishing),
· very good insulating qualities,
· high disruptive strength,
· high abrasion resistance,
· high weathering resistance,
· very good chemical resistance to various chemicals,
· free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
IEC/EN 60309 applies to CEE plugs and sockets which are used at an ambient temperature that does not normally exceed the range from -25°C to +40°C.
KRIPAL CEE plugs and sockets themselves have an operating temperature of -25°C to +80°C (100°C for 1 hour). The temperature of the contacts is allowed to rise by 50°C under the test conditions set out.
The design and material used have continuously been improved to meet the customer’s requirements, and to take the environmental aspects into consideration.
All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
Perfect for demanding customers.
The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.
Safety is also very important. By choosing KRIPAL Plugs and Sockets you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.
We can provide full range of industrial plug socket:
|Current||16A, 32A, 63A, 125A, 250A, 420A|
|Pins||2P+E, 3P+E, 3P+N+E|
|Voltage||20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V|
|PLUG & SOCKET||Low voltage plug socket <50V|
|Industrial plug, industrial socket|
|Wall mounted socket, wall mounted plug|
|Panel mounted socket, panel mounted plug|
|Interlocked switched socket|
|BOX||Industrial portable socket box|
|Industrial plastic socket box|
|Power maintenance box (stainless)|
|Power maintenance box (plastic)|
|Industrial lighting box (plastic)|
|Industrial lighting box (metal)|
|Distribution box for exhibition box|
|T. V / Film power distribution box|
|Distribution box with power and compress air outlet|
|Accessories||Cap for 16A, 32A, 63A, 125A plug|
1. We are professional in making precision plastic mould with high quality and manufactory plastic products.
2. We can provide high-quality of new product R & D, designing, mould forming and making and processing of plastic products.
3 We can tailor various kinds of Mould for each customer as per their requirements. The quotation can be made based on drawings or samples provided by the customers. Our products are both excellent in quality and reasonable in price.
4. There are a variety of imported equipments, such as processing center, huge engraving machine and electric spark
5. We also have punctual delivery time
6. We are committed to providing the best quality and service for customers all long. we enjoyed high reputation among our clients at home and abroad.
