| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS-C2243 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Exporting Package |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C,, D/P |
| Supply Ability: | 50000 pcs per month |
| IP Protection: | IP44 | Rated Current: | 16A 32A |
|---|---|---|---|
| Voltage: | 24V,48V | Frequency: | 50/60 Hz |
| Material: | Nylon，PA、PC、copper | Color: | White And Purple |
| Standard: | IEC Standard | Advantage: | Waterproof,Convenient,Durable |
| High Light: | IEC Industrial Plug Socket,24V Industrial Plug Socket,Low Voltage IP44 Plug |
||
| Current | Position | Voltage | Color | Poles | Model |

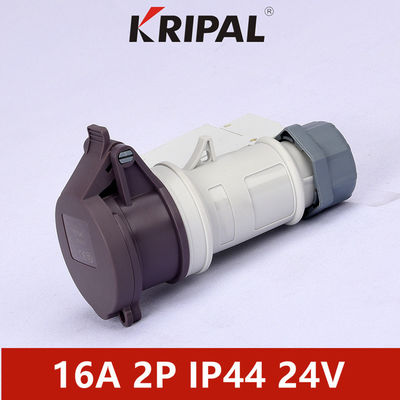

| 16A | / | 20-25V | Purple | 2P | UKS-C1243 |
| / | 20-25V | Purple | 2P+E | UKS-C1343 | |
| 12h | 40-50V | White | 2P | UKS-C1244-12 | |
| 12h | 40-50V | White | 3P+E | UKS-C1344-12 | |
| 32A | / | 20-25V | Purple | 2P | UKS-C2243 |
| / | 20-25V | Purple | 2P+E | UKS-C2343 | |

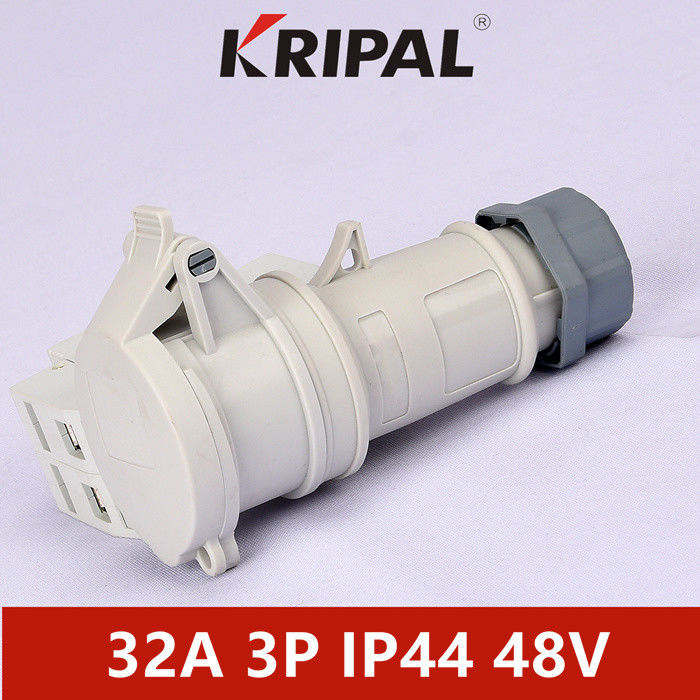

| 12h | 40-50V | White | 2P | UKS-C2244-12 | |
| 12h | 40-50V | White | 3P+E | UKS-C2344-12 |
Industrial plug Connector has extremely good insulation ability and it is unbreakable, wearable long-time durable, resistant against oil, gasoline and salt water, almost non-aging, extremely cold-proof and splash-proof, and it is installed easily through moveable cable clamp, used securely and reliably.
1. WATERPROOF TEST: IP DEGREE,WEATHERPROOF
As is well-know , the prodcut in working condition or in storage condition , tends to be afected by various kinds of liquid more or less.
The osmosis fow impact or accumulation of liquid may have a variety of efect on the product material and performance , and even may destory its structure.Therefore,the afect from liquid can not be ignored.
The purpose of rainfall test is to confirm the reverse osmose capacity of the housing and its operation stability and reliability when or after the equipment undergoes liquid erosion.
2.SAND AND DUST TEST
We produce products avaliable for use around the world , so one of problems taken into account is the operational environment for the product , so as to evaluate the prodcut adaptability of stroage,transport or operation when it's exposed to atmosphere with dry sand or dust .
Sand and dust tast adopts simulated sand and dust environment to test the dust resistance of the product and to confirm whether the product can be used for long in various hostile natural environment .
3. CTI/PTI TEST
We design and develop products taking into account performance indexes of parts like metal conductive parts, and the CTI/PTI of plastic materials as wells.
The material selection for each development must undergo strictly controlled CTI/CPI for the purpose of better insulating property and safe operation.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| BOX | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Zhejiang Kripal Electric Co., Ltd founded in 1992 is specialized in circuit breaker ,AC contactor , industrial plug and socket, weather protected switchgear, and others. With the repaid development in last 29years. KRIPAL act as one of the biggest manfactures in eleectrical industry in China.
With a wide marketing network ,the products are exported to Europe ,Amercia, Afric , South Asia,Hongkong , Macaw,Taiwan and othe areas and enjoy high reputation in the international market .
Welcome to Kripal!
