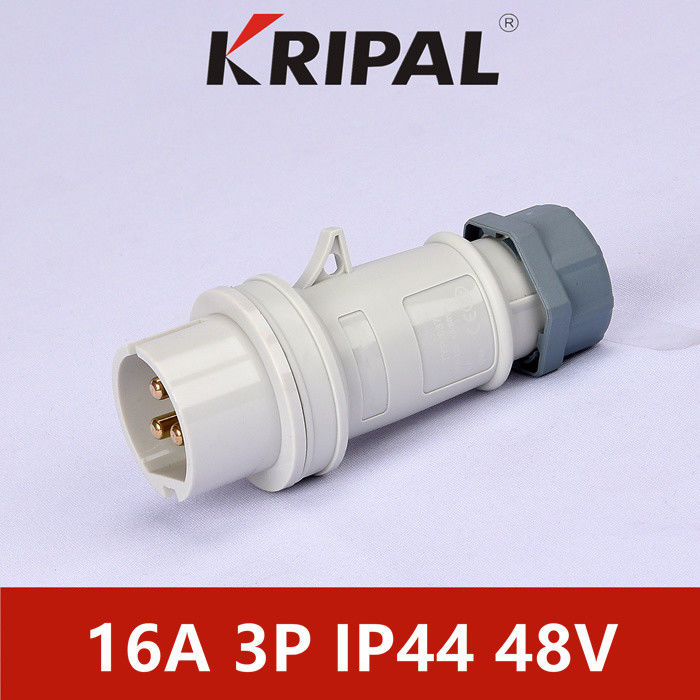

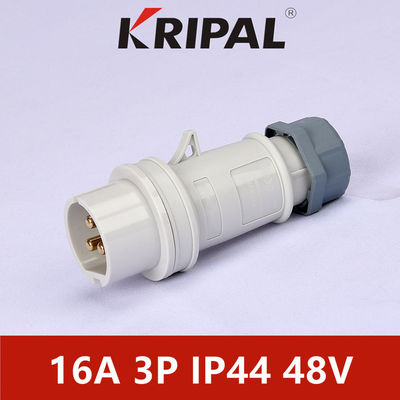

IEC Standard IP44 Waterproof Low Voltage Power Plug 48V 3P 16A 12H
Product Summary
Product Details
12H Power Plug Socket
,IEC Power Plug Socket
,IP44 3 Pin Power Plug
Product Description
IEC Standard IP44 Waterproof Low Voltage Power Plug 48V 3P 16A
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 20-25V | Purple | 2P | UKS-A1243 | |
| 20-25V | Purple | 2P+E | UKS-A1343 | ||
| 12h | 40-50V | White | 2P | UKS-A1244-12 | |
| 12h | 40-50V | White | 3P+E | UKS-A1344-12 | |
| 32A | 20-25V | Purple | 2P | UKS-A2243 | |
| 20-25V | Purple | 2P+E | UKS-A2343 | ||
| 12h | 40-50V | White | 2P | UKS-A2244-12 | |
| 12h | 40-50V | White | 3P+E | UKS-A2344-12 |
| Product | Low Voltage Plug |
| Rated current | 16A,32A |
| No. of poles | 2P,2P+E |
| Voltage | 20-25V;40-50V |
| Protection degree | IP44 |
| Power type | Single Phase |
| Conductor cross-sectional area (mm2) | 1.5-2.5(16A), 4-6(32A) |
| Material | NYLON,PA, PC, Copper |
Product Feature
1.Perfect performance
All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
Perfect for demanding customers.
2.Perfect productivity
The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.
3.Perfect safety
Safety is also very important. By choosing Purple Horn Plugs and Sockets you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.
Applications
Protective extra-low voltage is a preventive measure for use under extreme conditions, the rated voltage (AC) is limited by max 50V.
Special working conditions (conductive environment e.g. in or on boilers, pipelines, containers, metal frames or limited freedom of motion) require the use of extra-low voltage plugs and sockets.
