| Place of Origin: | CHINA |
| Brand Name: | KRIPAL |
| Certification: | TUV,CE |
| Model Number: | UKPD32 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 30pcs per carton box use normal carton box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 6000 pcs per month |
| Pole: | 4P | Frequency: | 50/60Hz |
|---|---|---|---|
| Voltage: | 1200V DC | Material: | PC |
| Standard: | IEC 60947-3 | Advantage: | Anti-flame |
| High Light: | Photovoltaic DC Isolator Switch,DC 25Amp Isolator Switch,Isolation Rear Installation DC Isolator Switch |
||

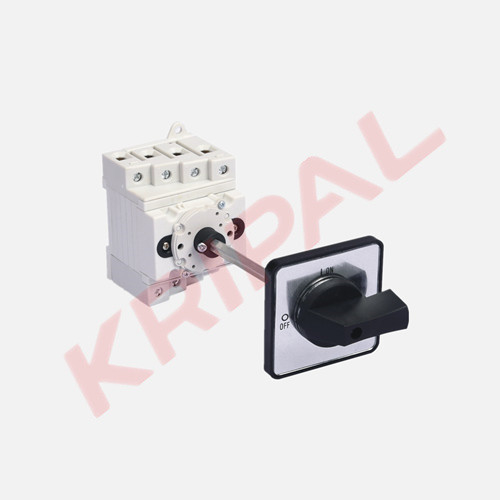

Photovoltaic DC Switch Isolation Rear Installation 1200V 25Amp IEC Standard
|
Brand Name |
KRIPAL |
|
Model Number |
UKPD32 |
|
Type |
Photovoltaic DC Isolator Switch |
|
Function |
Isolation,Control |
|
Standard |
IEC60947-3,DC-21B |
|
Pole |
4P |
|
Maximum Rated Amp |
32A |
|
Rated Workig Voltage Ue |
1200V DC |
|
Rated Amp In |
16A/25A/32A |
|
Rated Insulated Voltage Ui |
1200V DC |
|
Rated Impulsed Voltage Uimp |
8KV |
|
Mechanical Life |
20000 |
|
Electrical Life |
500 |
|
Cap Spec |
M4 |
|
Scerw Torque Nm |
2.5 |
|
Cross Wire mm² |
4-16 |
|
Protection Level |
IP65 |
|
The Environment Temperature |
-25℃~+85℃ |
Application
UKPD32 series photovoltaic DC isolation switches have a maximum rated voltage of DC1200V and a maximum rated current level of 32A. They are widely used in string photovoltaic inverters, controllers, 1~4 loop combiner boxes and other equipment to provide electrical isolation and control for the DC side of photovoltaic systems. Control protection, ensure safe operation, and can make and break the circuit under load.
|
Lead Time |
Normally 20 days after received your fund, but mostly depends on your quantity |
|
Leading Port |
Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
|
Trade Term |
EXW, FOB, CIF as customer need |
|
Payment Term |
T/T 30% as deposit,and 70% before delivery. |
|
Packaging |
Neutral carton, or according to customer requirements |
|
Shipping |
By Air, by sea, by express |
FAQ
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q:What is your terms of delivery?
A: EXW, FOB, CIF.
Q:How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q: How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our company
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
