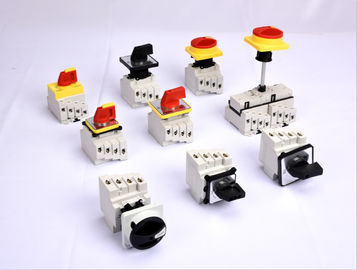

Durable 1000V DC Isolator Switch Disconnector 32A With PC Enclosure IP66
Product Specification
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
TUV CE
Model Number:
UKPD32
Minimum Order Quantity:
100
Price:
$15 PER UNIT
Standard Packaging:
30pcs per carton box use normal carton box
Delivery Time:
10-20days
Supply Ability:
2000pcs per 10 days
Product Summary
Always the first DC isolator manufacturer follows the new requirements. 1000V True DC for solar PV application IP66 1000V 32A true DC isolator switch UKPD32, shall be installed between the solar arrays and solar inverter. For isolation the PV array during system installation or any maintenance. ...
Product Details
Highlight:
solar panel isolator switch
,solar isolator switch
MATERIAL:
PC
MAX VOLTAGE:
1500 DC
MAX AMP:
32A
HANDLE COLOR:
CHANGEABLE COLOR
Electrical Cycle:
1000
Mechanical Cycle:
15000
Product Description
Always the first DC isolator manufacturer follows the new requirements.
1000V True DC for solar PV application
IP66 1000V 32A true DC isolator switch UKPD32, shall be installed between the solar arrays and solar inverter.
For isolation the PV array during system installation or any maintenance.
Recommend as a standard isolator to solar installers.
Find more info from the grid connected solar PV systems install and supervise guidelines.
| Model | UKPD32 |
| Poles | 2P 4P |
| Standard | IEC60947.3,AS60947.3:2018 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 500V,600V,800V,1000V |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CB |
* IP66 for vertical and horizontal installation.
* UV resistance and flame retardant material.
Packaging & Delivery
- Packaging Details
- 1pc/inner box with plastic film.
20pcs/ctn
