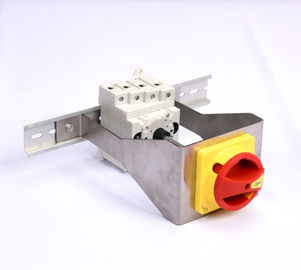

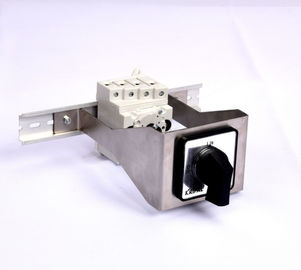

Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life

Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life

  • Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life
  • Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life
  • Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life
  • Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life
Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: TUV CE
Model Number: UKPD32
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $10 PER UNIT
Packaging Details: 30pcs per carton box use normal carton box
Delivery Time: 10-20days
Supply Ability: 2000pcs per 10 days
Contact Now
Detailed Product Description
MATERIAL: PC MAX VOLTAGE: 1500 DC
MAX AMP: 32A HANDLE COLOR: CHANGEABLE COLOR
Electrical Cycle: 1000 Mechanical Cycle: 15000
High Light:

solar panel isolator switch

,

solar dc isolator

Place of Origin:
Zhejiang, China
Brand Name:
KRIPAL
Model Number:
UKPD32
Max. Current:
32A
Max. Voltage:
1500VDC
Product name:
DC isolator switch
Certificate:
CE ISO9001
Rated current:
32A
Rated voltage:
600-1500V D.c
Pole:
2p/4p
Another name:
dc isolator
IP Degree:
IP66
Rated insulation voltage:
1500V
Rated impulse withstand voltage:
8000V
Name:
DC isolator switch





Always the first DC isolator manufacturer follows the new requirements.



1000V True DC for solar PV application



IP66 1000V 32A true DC isolator switch UKPD32, shall be installed between the solar arrays and solar inverter.

For isolation the PV array during system installation or any maintenance.



Recommend as a standard isolator to solar installers.

Find more info from the grid connected solar PV systems install and supervise guidelines.





Model UKPD32
Poles 2P 4P
Standard IEC60947.3,AS60947.3:2018
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate TUV / CB


Specification:



* 1000Vdc 32A

* IP66 for vertical and horizontal installation.

* UV resistance and flame retardant material.

Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life 0Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life 1Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life 2

Packaging & Delivery
Packaging Details
1pc/inner box with plastic film.
20pcs/ctn

Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life 3Pc 2 Pole Solar Pv Dc Isolator Switch Max Voltage 1500 With Long Life 4
