Place of Origin: | CHINA |
Brand Name: | KRIPAL |
Certification: | TUV,CE |
Model Number: | UKPD32 |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | negotiable |
Packaging Details: | 30pcs per carton box use normal carton box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 6000 pcs per month |
Rated Amp: | 16A/25A/32A | Pole: | 4P |
---|---|---|---|
Voltage: | 1200V DC | Material: | PC |
Surface Mounted: | Mounted Via 1 Holes | Standard: | IEC 60947-3 |
High Light: | PC DC Isolator Switch Outdoor,4P PV DC Isolator Switch,1200V IP65 DC Isolator Switch |

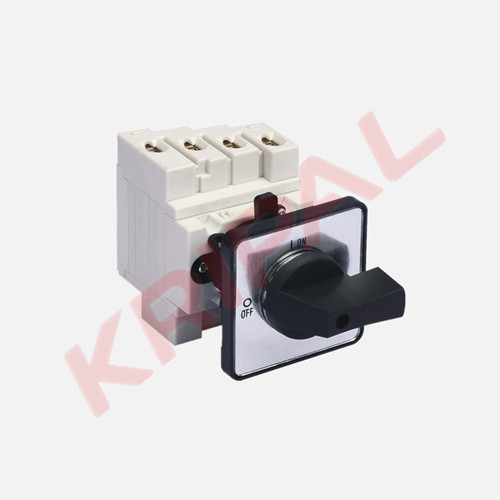

UKPD32 series photovoltaic DC isolation switches have a maximum rated voltage of DC 1200V and a maximum rated current of 32A. They are widely used in string photovoltaic inverters, controllers, 1-4 loop combiner boxes and other equipment to provide electrical isolation and control for the DC side of photovoltaic systems, it can be carry load operation.
1. Fast breaking speed, short arcing time,Large contact gap;
2. The rotary arc extinguishing structure is adopted, which has good arc extinguishing effect, and is separated by movable copper seats, and there is no arc between sheets;
3. By changing the structure of moving and static contacts, the contact mode is changed from point contact or line contact to surface contact, and the conductivity is enhanced;
4. The modular design is adopted, which simplifies the parts, high versatility, improved production efficiency;
5. Strong breaking ability;
6. The advantages of long life and high protection level.
Lead Time |
Normally 20 days after received your fund, but mostly depends on your quantity |
Leading Port |
Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
Trade Term |
EXW, FOB, CIF as customer need |
Payment Term |
T/T 30% as deposit,and 70% before delivery. |
Packaging |
Neutral carton, or according to customer requirements |
Shipping |
By Air, by sea, by express |
Our company
Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.
The company was founded in 1992. After 30 years of vigorous development, it now has a plant area of more than 15000 square meters and more than 500 employees, including more than 10 senior engineers, more than 30 professional technicians and more than 30 senior managers. The products have passed UL, VDE, TUV, Kema, Semko, SAA, CE, CB test report certificates, ROHS international certification, and national 3C and ISO9001 quality certification.
The company adheres to the enterprise policy of "operation and management, independent innovation, coordination and cooperation, and brand first", and abides by the commitment of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, creating benefits for the company and contributing to the harmonious society", and take "striving to realize the dream of professional electrical world brand" as the mission.
We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
