| Place of Origin: | CHINA |
| Brand Name: | KRIPAL |
| Certification: | TUV,CE |
| Model Number: | UKPD32 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 30pcs per carton box use normal carton box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 6000 pcs per month |
| Pole: | 4P | Voltage: | 1200V |
|---|---|---|---|
| Standard: | IEC 60947-3 | Arc Extinguishing Time: | ＜3ms |
| Surface Mounted: | Surface Mount | Advantage: | Anti-flame |
| High Light: | Electrical Solar PV DC Isolator Switch,IP65 DC Isolator Switch,4 Pole DC Isolator Switch |
||

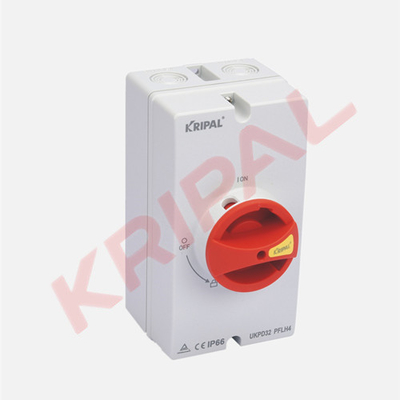

Waterproof IP65 1200V Electrical Solar DC Isolator Switch For PV System
Photovoltaic DC isolation switch is a dedicated DC main switch for solar photovoltaic systems. It is mainly used between the DC terminal of the inverter and all DC sources to ensure reliable isolation of the inverter from all DC sources and protect important components in the solar photovoltaic power generation system. Reliable operation of devices and photovoltaic power generation systems.
|
Brand Name |
KRIPAL |
|
Model Number |
UKPD32 |
|
Type |
Photovoltaic DC Isolator Switch |
|
Function |
Isolation,Control |
|
Standard |
IEC60947-3,DC-21B |
|
Pole |
4P |
|
Maximum Rated Amp |
32A |
|
Rated Workig Voltage Ue |
1200V DC |
|
Rated Amp In |
16A/25A/32A |
|
Rated Insulated Voltage Ui |
1200V DC |
|
Rated Impulsed Voltage Uimp |
8KV |
|
Mechanical Life |
20000 |
|
Electrical Life |
500 |
|
Cap Spec |
M4 |
|
Scerw Torque Nm |
2.5 |
|
Cross Wire mm² |
4-16 |
|
Protection Level |
IP65 |
|
The Environment Temperature |
-25℃~+85℃ |
Proper installation ways
①Mounted via 4 holes
②Mounted via 1 holes
③Rear installation
④Combined switch
⑤Surface Installed
1. Fast breaking speed, short arcing time,Large contact gap;
2. Use the rotating arc structure to extinguish the arc,the effect is good, and it is separated by the movable copper seat,the pieces are spaced apart, without arcs;
3. By changing the structure of the moving and static contacts advance, so that the contact mode is changed from the original,the point or line contact is changed to surface contact,enhanced electrical conductivity;
4. The modular design is adopted, which simplifies the parts, high versatility, improved production efficiency;
5. Strong breaking ability;
6. The advantages of long life and high protection level.
Application
UKPD32 series photovoltaic DC isolation switches have a maximum rated voltage of DC1200V and a maximum rated current level of 32A. They are widely used in string photovoltaic inverters, controllers, 1~4 loop combiner boxes and other equipment to provide electrical isolation and control for the DC side of photovoltaic systems. Control protection, ensure safe operation, and can make and break the circuit under load.
|
Lead Time |
Normally 20 days after received your fund, but mostly depends on your quantity |
|
Leading Port |
Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
|
Trade Term |
EXW, FOB, CIF as customer need |
|
Payment Term |
T/T 30% as deposit,and 70% before delivery. |
|
Packaging |
Neutral carton, or according to customer requirements |
|
Shipping |
By Air, by sea, by express |
Our company
Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.
The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.
The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".
We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
