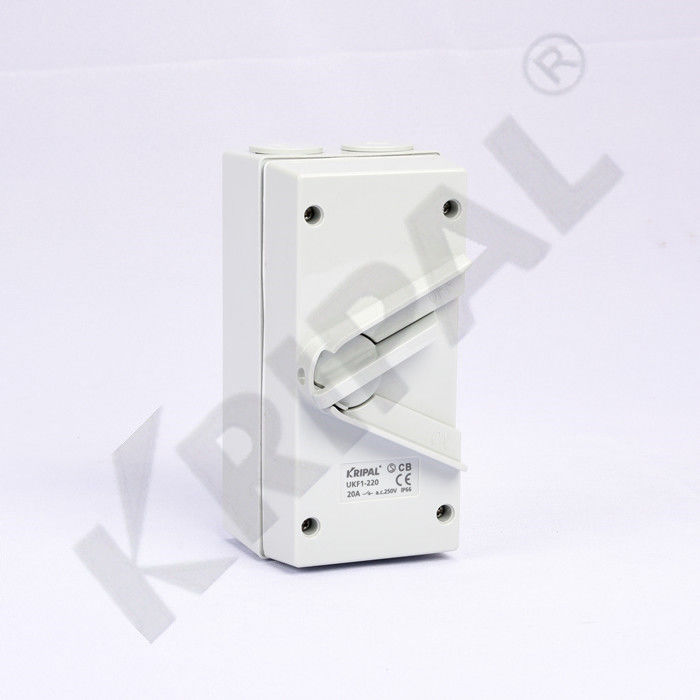

20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof

20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof

  • 20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof
  • 20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof
20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKF1-220
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Pole: 2P Rated Current: 20A
Material: PC、Copper Protection Degree: IP66
Frequency: 50/60Hz Advantage: Waterproof,dustproof,anti-corrosion,anti-ultraviolet,flame Retardant

20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof




Product Description


Waterproof isolating switch with super waterproof and dustproof function, can effectively prevent the entry of dirt and grease, one thousand rain or strong water will not affect the performance of the product; At the same time, it has the characteristics of anti-corrosion, anti-uv, cold resistance, high temperature resistance, anti-aging, etc., which can solve your problem in rain, dust, frost, high temperature and strong uv. Weather resistance isolator application range, suitable for any outdoor application conditions.


 Brand Name  KRIPAL
 Model  UKF1,UKF2,UKF3,UKF4
 Type  Standard Grounding
 Number of poles  1P,2P,3P,4P
 Current  10A,16A,20A,35A,63A
 Frequency  50/60Hz
 Rated Voltage  250V/500V
 Protection  IP66
 Material  PC,Copper
 Standard  IEC/EN60947,AS/NZS 3123:2005
 Color  Gray&White
 Warranty  One and a half years
 Advantage  Waterproof,Dustproof,Anti-corrosion,Anti-ultraviolet,Flame   retardant ,High temperature,Anti-aging and other characteristics.


20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof 0





Product Feature


1.The mounting mechanism of the switch base terminal box provides a larger and simpler wiring position.

2.The grounding and neutral connection rods are installed with double tightening screws, which can effectively fix all cables to the terminal box and clamp reliably to prevent liquid leakage

3.Safety is higher, the switch is installed on the metal structure with an insulating cap, the insulating cap covers the base mounting screw, to prevent contact with the live cable insulation cover can be reliably installed on the metal structure switch,WHD panel cover and the base of the combination of two plastic screws, can fully avoid leakage.

4. Each device is provided with a threaded conduit joint and threaded reducing pipe for connection to a 25mm or 20mm conduit and nut; Nuts must be installed to ensure IP ratings.

5. Impact resistant base and cover in almost all installation conditions can withstand violent impact between the base and cover is divided by a weather-resistant waterproof sealing ring.

6. For safety, a hole with a diameter of 7mm in the OFF position is used in a heavily machined cast baffle to padlock the control lever during maintenance or overhaul. The deep-mounted baffle is secured to prevent accidental switch operation of the joysticks.

7. All products comply with IEC60947-3 standard and provide safe and reliable control of power supply in any harsh working environment.





Product Application



The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.




Our service


1.Please kindly inform us which items you are interested&the reasonable price will be provided you upon receipt of your new inquiry ASAP.

2. Strong production capacity and strict quality control system;

3. Reply inquiry in 24 hours;

4. OEM and ODM service provided;

5. Samples will be offered to you for our future cooperation.





Our company



Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.



20A IP66 Single-phase Industrial Isolator Switch Outdoor Dustproof 1
