20A IP66 440V Three phase four stage isolating switch AS standard

Product Advandage

Waterproof isolating switch has super waterproof and dustproof function, can effectively prevent the entry of dust and oil, in case of rain or strong water spraying will not affect the performance of the product; At the same time, it has the characteristics of anti-corrosion, anti-ultraviolet, cold, high temperature, anti-aging, etc. It can solve your needs for safe electricity use in harsh outdoor environment such as rain, dust, freezing, high temperature and strong ultraviolet light. The weather-resistant isolating switch has a wide range of applications and is suitable for any outdoor application conditions.

Product Feature

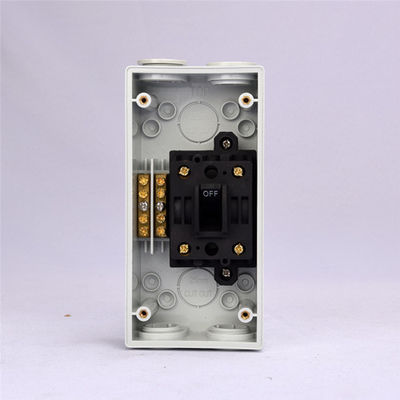

1.The mounting mechanism of the switch base terminal box provides a larger and simpler wiring position.

2.The grounding and neutral connection rods are installed with double tightening screws, which can effectively fix all cables to the terminal box and clamp reliably to prevent liquid leakage

3.Safety is higher, the switch is installed on the metal structure with an insulating cap, the insulating cap covers the base mounting screw, to prevent contact with the live cable insulation cover can be reliably installed on the metal structure switch,WHD panel cover and the base of the combination of two plastic screws, can fully avoid leakage.

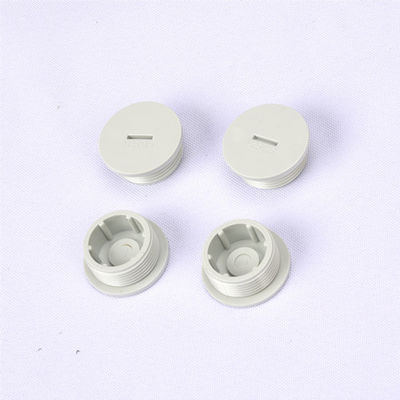

4. Each device is provided with a threaded conduit joint and threaded reducing pipe for connection to a 25mm or 20mm conduit and nut; Nuts must be installed to ensure IP ratings.

5. Impact resistant base and cover in almost all installation conditions can withstand violent impact between the base and cover is divided by a weather-resistant waterproof sealing ring.

6. For safety, a hole with a diameter of 7mm in the OFF position is used in a heavily machined cast baffle to padlock the control lever during maintenance or overhaul. The deep-mounted baffle is secured to prevent accidental switch operation of the joysticks.

7. All products comply with IEC60947-3 standard and provide safe and reliable control of power supply in any harsh working environment.

8. Appearance color: the standard color of the switch is gray and white.

Product Applications

The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.
