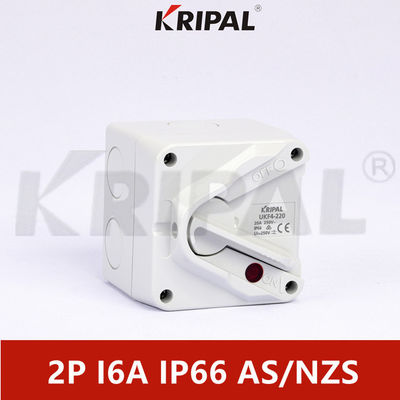

IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch

IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch

  • IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch
  • IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch
IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKF4 series
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Protection Degree: IP66 Material: PC、Copper
Rated Current: 10A,16A,20A,35A Pole: 1P,2P
Frequency: 50/60Hz Feature: Dustproof,Waterproof,Corrosion Protection
High Light:

Mini Weatherproof Isolator Switch


Electrical Weatherproof Isolator Switch


250V 2Pole Weatherproof Switch Socket

IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch




Product Description


 Brand Name  KRIPAL
 Model  UKF1,UKF2,UKF3,UKF4
 Type  Standard Grounding
 Number of poles  1P,2P,3P,4P
 Current  10A,16A,20A,35A,63A
 Frequency  50/60Hz
 Rated Voltage  250V/500V
 Protection  IP66
 Material  PC,Copper
 Standard  IEC/EN60947,AS/NZS 3123:2005
 Color  Gray&White
 Warranty  One and a half years
 Advantage  Waterproof,Dustproof,Anti-corrosion,Anti-ultraviolet,Flame   retardant ,High temperature,Anti-aging and other characteristics.

IP66 250V 2Pole 16A Electrical Mini Weatherproof Isolator Switch 0




Reference Model


Current(A) Rated Voltage(V) Pole(P) Type
10 250 1 UKF4-110
2 UKF4-210
16 250 1 UKF4-116
2 UKF4-216
20 250 1 UKF4-120
2 UKF4-220
35 250 1 UKF4-135
2 UKF4-235





Product Feature



1. The switch base mounting device provides more easily termination and larger wiring space.


2. The grounding and neutral connection rods are installed with double fastening screws, which can effectively fix all cables to the junction box and reliably clamp them to prevent liquid leakage.


3. The security is higher, the installation is equipped with a switch to the metal structure insulation cap, insulating cover cap base mounting screws, to prevent its access to the electric cable.


4. Each device is equipped with threaded conduit connector and threaded reducing pipe for connecting 25mm or 20mm conduit and nut; Nuts must be guaranteed IP rating.


5. Impact resistance under the condition of almost all installed base and lid can inherit the violent impact between the base and lid, separated by weather resistance and waterproof seal between the base and lid.


6. For safety, use 7mm diameter holes in heavily machined cast baffles to lock the lever during maintenance or overhaul. The deep mounting baffle is secured to prevent accidental switch operation of the operating handle.


7. All products meet IEC60947-3 standard, in any bad work environment to provide a safe and reliable power supply control.


8. Appearance color: The standard color of the switch is gray and white.





Product Application



The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.





Packaging & Delivery



 Lead Time  Normally 20 days after received your fund, but mostly depends on   your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port   please kindly advise and the extra inland transportation freight will   be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express
