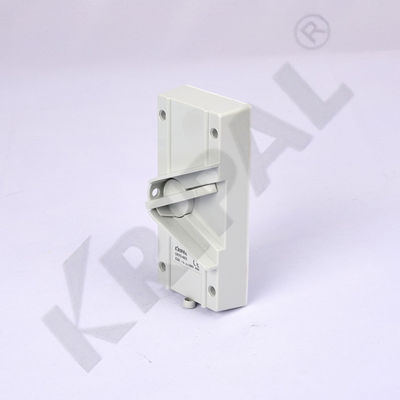

IP66 440V 20A Three Phase Electrical Weatherproof Isolator Switch
Product Summary
Product Details
Product Description
IP66 440V 20A Three Phase Electrical Weatherproof Isolator Switch
Product Description
| Brand Name | Purple Horn |
| Model | UKF1,UKF2,UKF3,UKF4 |
| Type | Standard Grounding |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,35A,63A |
| Frequency | 50/60Hz |
| Rated Voltage | 250V/500V |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
| Advantage | Waterproof,Dustproof,Anti-corrosion,Anti-ultraviolet,Flame retardant ,High temperature,Anti-aging and other characteristics. |
| Current(A) | Rated Voltage(V) | Pole(P) | Type |
| 20 | 250 | 1 | UKF3-120 |
| 440 | 2 | UKF3-220 | |
| 3 | UKF3-320 | ||
| 4 | UKF3-420 | ||
| 35 | 250 | 1 | UKF3-135 |
| 440 | 2 | UKF3-235 | |
| 3 | UKF3-335 | ||
| 4 | UKF3-435 | ||
| 63 | 250 | 1 | UKF3-163 |
| 440 | 2 | UKF3-263 | |
| 3 | UKF3-363 | ||
| 4 | UKF3-463 |
Product Feature
1. Install the grounding and neutral connection rod with double clamping screws, which can effectively fix all cables to the junction box and clamp reliably to prevent liquid leakage
2. Higher safety. The switch is installed on the metal structure with an insulation cap, which is covered on the base mounting screw to prevent contact with the live cable.
3. Each device is equipped with threaded conduit connector and threaded reducing pipe for connecting 25mm or 20mm conduit and nut; Nuts must be installed to ensure IP rating.
4. Impact resistant base and cover can withstand severe impact between the base and cover under almost all installation conditions, separated by a weather resistant waterproof seal ring.
5. For safety, use 7mm diameter holes in heavily machined cast baffles to lock the lever during maintenance or overhaul. The deep mounting baffle is secured to prevent accidental switch operation of the operating handle.
6. Appearance color: The standard color of the switch is gray and white.
Product Application
Packaging & Shipping
| Delivery Time | 30 working days for bulk order and depend on ordering quantity |
| Shipment Port | Ningbo & Shanghai |
| Trade Term | Ex works, FOB, CFR, etc. |
| Payment | T/T,L/C,D/P |
| Packing | Standard Export Master Package, but we can do your own requested Package |
| Shipping | By air,By sea,By express. |
Our Service
1.Please tell us the model and quantity and other request you need.
2.Solve the problem with you during using our products.
3.Reply inquiry in 24 hours.
4.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
5.Solved the problem with you during using our products.
Our company
Purple Horn Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in , , the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "Purple Horn" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
