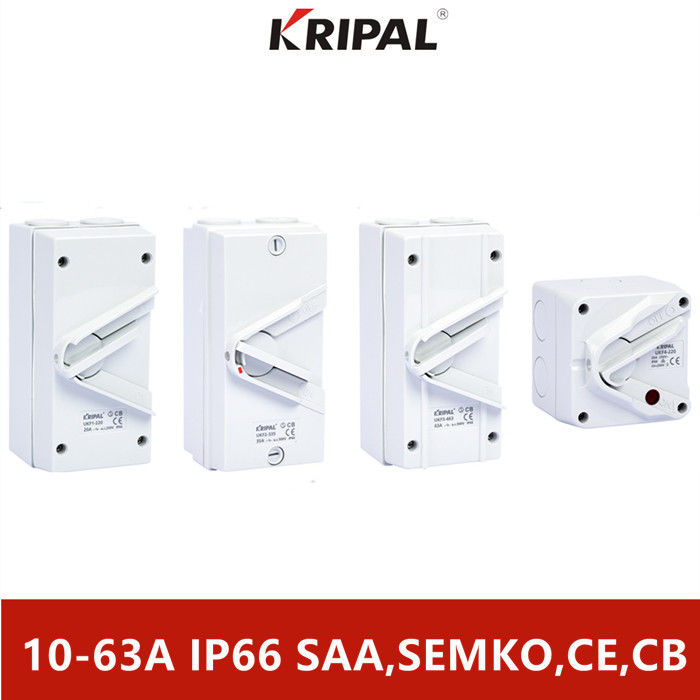

IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch

IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch

  • IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
  • IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
  • IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
  • IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
  • IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Model Number: UKF series
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Pole: 1P,2P,3P,4P Rated Current: 10A,16A,20A,35A,63A
Protection Degree: IP66 Frequency: 50/60Hz
Material: PC、Copper Standard: IEC/EN60947,AS/NZS 3123:2005

IP66 10-63A 250V 440V UKF series Weatherproof Lever Switch







Product Description



The waterproof isolation switch has a super waterproof and dustproof function, which can effectively prevent the entry of dust and oil. In case of rain or strong water spray, it will not affect the performance of the product; at the same time, it has anti-corrosion, anti-ultraviolet, cold, high-temperature, and anti-corrosion properties. aging characteristics, that you can solve in the rain, dust, ice, heat and strong ultraviolet rays. Weather disconnector wide range of applications, for any application for outdoor conditions.





 Brand Name  KRIPAL
 Model  UKF1,UKF2,UKF3,UKF4
 Type  Standard Grounding
 Number of poles  1P,2P,3P,4P
 Current  10A,16A,20A,35A,63A
 Frequency  50/60Hz
 Rated Voltage  250V/500V
 Protection  IP66
 Material  PC,Copper
 Standard  IEC/EN60947,AS/NZS 3123:2005
 Identification  SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT
 Color  Gray&White
 Warranty  One and a half years
  Advantage  Waterproof,Dustproof,Anti-corrosion,Anti-ultraviolet,Flame   retardant ,High temperature,Anti-aging and other   characteristics.



IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch 0











Product Feature





1. The switch base mounting device provides more easily termination and larger wiring space.

2. The grounding and neutral connection rods are installed with double fastening screws, which can effectively fix all cables to the junction box and reliably clamp them to prevent liquid leakage

3. The security is higher, the installation is equipped with a switch to the metal structure insulation cap, insulating cover cap base mounting screws, to prevent its access to the electric cable.

4. Each unit is equipped with a threaded pipe joint and thread reducer, used to connect to 25 mm or 20 mm catheters and nuts; Nut must ensure that the IP rating.

5. Impact resistance under the condition of almost all installed base and lid can inherit the violent impact between the base and lid, separated by weather resistance and waterproof seal between the base and lid.

6. To be on the safe side, in a large number of processing used in the casting baffle of 7 mm diameter hole, in the maintenance or overhaul during the locking lever. The deep mounting baffle is secured to prevent accidental switch operation of the operating handle.

7. All products meet IEC60947-3 standard, in any bad work environment to provide a safe and reliable power supply control.

8. Appearance color: standard color is gray and white of the switch.









Product Application



Products are widely used in smelting, chemicals, power electronics, airports, railways, construction sites, mines, quarries, water supply and drainage treatment plants, automobile manufacturing, ports, docks, shopping malls, hotels and other places. When used as a service switch and safety switches, should be clearly marked "open" and "closed" position, and to provide the padlock hole, a padlock can be installed in the "off" portion; To lock in the "open" position, a locking hole simply ; To ensure the safety of users.



IP66 10-63A 250V 440V UKF series Weatherproof Outdoor Lever Switch 1










Packaging & Shipping




 Lead Time  Normally 20 days after received your fund, but mostly depends   on your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port   please kindly advise and the extra inland transportation freight   will be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express
