4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard

4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard

  • 4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard
  • 4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard
  • 4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard
  • 4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard
4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKF3-420
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 20A Frequency: 50/60Hz
Pole: 4P Material: PC、Copper
Standard: IEC/EN60947,AS/NZS 3123:2005 Advatage: Waterproof,dustproof,damp-proof,anti-aging

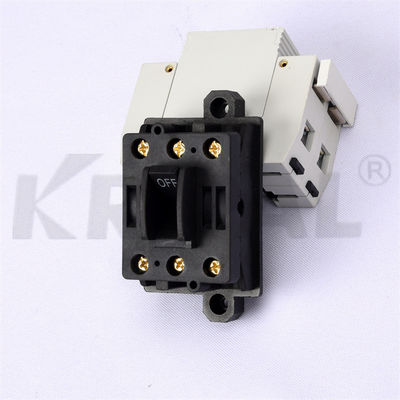

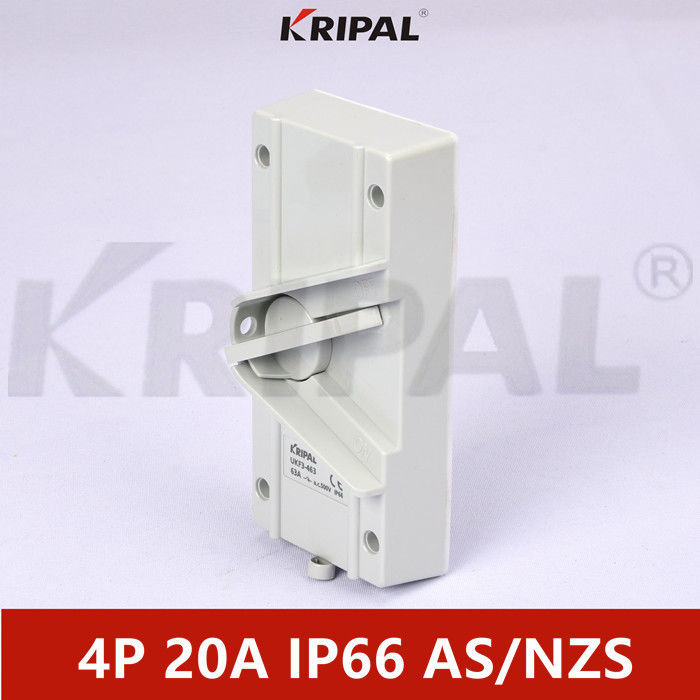

4P 20A 440V Waterproof Isolator Switch Australian standard




Product Description


Isolating switch having a superior waterproof and dustproof waterproof function, can effectively prevent the entry of dust and oil, in case of rain or strong mist will not affect the performance of the product; the same time, it has a corrosion resistance, UV resistance, cold resistance The characteristics of high temperature, anti-aging, etc. can solve your need for safe electricity use in harsh outdoor environments (such as rain, dust, freezing, high temperature, strong ultraviolet rays). Weather-resistant isolation switches have a wide range of applications and are suitable for any outdoor application conditions.


4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard 0


Current(A) Rated Voltage(V) Pole(P) Type
20 250 1 UKF3-120
440 2 UKF3-220
3 UKF3-320
4 UKF3-420
35 250 1 UKF3-135
440 2 UKF3-235
3 UKF3-335
4 UKF3-435
63 250 1 UKF3-163
440 2 UKF3-263
3 UKF3-363
4 UKF3-463





Product Feature


1. UKF series weatherproof isolation switch wide range of applications, suitable for any outdoor application conditions. Including unipolar, bipolar and three-pole switch, current range 20A-63A. Base mounting arrangement provides easier termination and more wiring space. (Switch size is 165 * 82mm, total height 85mm)

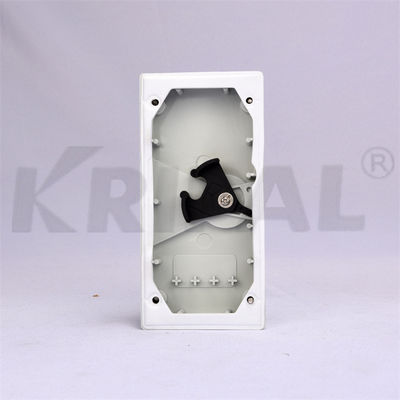

2. Install ground and neutral connecting rod with double intensify screw, dial the same cable length and reliable clamping aperture terminal 5-6mm. More secure, installation switches to a metal structure with an insulating cap, insulating cap covering the base mounting screws to prevent their exposure to energized cables.

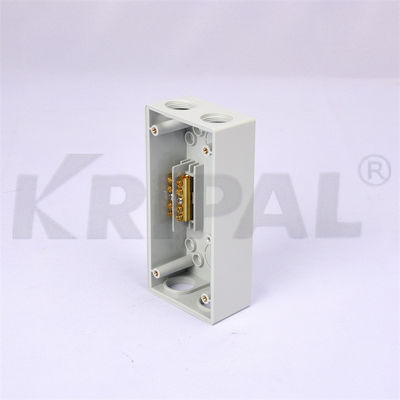

3. Each device provides a threaded pipe threaded Reducing joint connector box to connect with 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP Rating. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulded barriers protect the operating lever from physical abuse or accidental switching.

4. All units comply to IEC60947-3. Standard colours are grey & white.





Product Application


4P 20A 440V Waterproof Isolator Switch Outdoor Australian standard 1





Packaging & Delivery


 Lead Time  Normally 20 days after received your fund, but mostly   depends on your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading   port please kindly advise and the extra inland transportation   freight will be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express








Q:Are you factory?

A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.


Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.


Q: What is your sample policy?

A: Sample is available ,but sample should be paied in advance. The cost of sample will be refund after further order.


Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.


Q:Do you offer OEM service?

A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.





Our company


Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".


Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.


The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.


Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
