Home ProductsWeatherproof Switch Socket

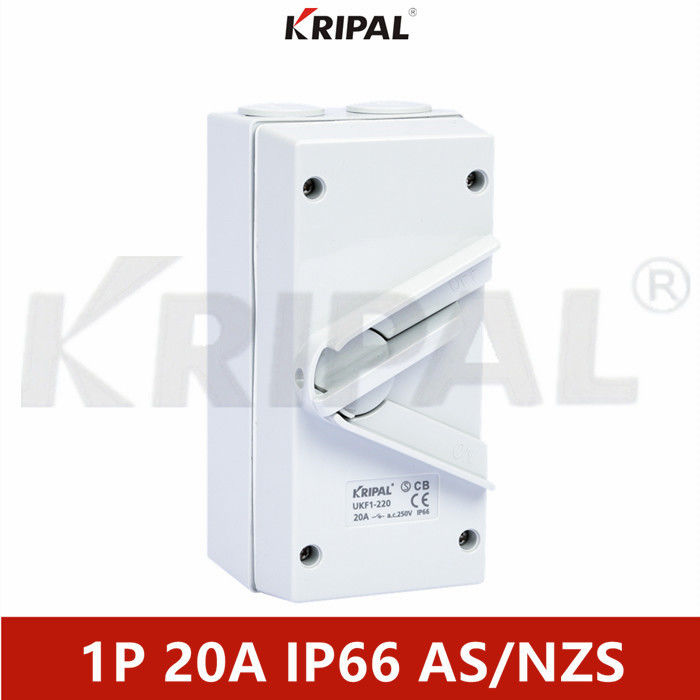

250V 1P Weatherproof Outdoor Isolating Switch Australian standard

250V 1P Weatherproof Outdoor Isolating Switch Australian standard

  • 250V 1P Weatherproof Outdoor Isolating Switch Australian standard
  • 250V 1P Weatherproof Outdoor Isolating Switch Australian standard
  • 250V 1P Weatherproof Outdoor Isolating Switch Australian standard
  • 250V 1P Weatherproof Outdoor Isolating Switch Australian standard
250V 1P Weatherproof Outdoor Isolating Switch Australian standard
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKF1-120
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 20A,35A,63A Material: PC、Copper
Protection Degree: IP66 Pole: 1P,2P,3P,4P
Standard: IEC/EN60947,AS/NZS 3123:2005 Feature: Anti-ultraviolet,flame Retardant ,high Temperature

250V 1P Weatherproof Outdoor Isolator Switch Australian standard




Product Description


Isolating switch having a superior waterproof and dustproof waterproof function, can effectively prevent the entry of dust and oil, or in case of strong rain water does not affect the performance of the product; the same corrosion-resistant, UV resistant, cold, heat, anti-aging characteristics, that you need to solve the safe use of electricity in rain, dust, ice, high temperatures, strong ultraviolet radiation and other harsh outdoor environments. Weathering disconnector has wide application, for any outdoor application conditions.



 Brand Name  KRIPAL
 Model Number  UKF1
 Type  Weatherproof switch
 Number of poles  1P,2P,3P,4P
 Current  10A,16A,20A,35A,63A
 Frequency  50/60Hz
 Protection  IP66
 Material  PC,Copper
 Standard  IEC/EN60947,AS/NZS 3123:2005
 Color  Gray&White
 Warranty  One and a half years



Current(A) Rated Voltage(V) Pole(P) Type
20 250 1 UKF1-120
440 2 UKF1-220
3 UKF1-320
4 UKF1-420
35 250 1 UKF1-135
440 2 UKF1-235
3 UKF1-335
4 UKF1-435
63 250 1 UKF1-163
440 2 UKF1-263
3 UKF1-363
4 UKF1-463





Product Feature


1.Fixed earth and neutral connectors with double clamping screws per channel provide equal tear length and clamp all cables firmly. The size of terminal hole is 5-6.6mm.


2.The safety feature for mounting the switch to the metal structure is the insulating cover, which covers the base mounting screws to completely protect them from any live cables.


3.Each unit is provided with threaded conduit plugs and threaded reducers for easy connection to 20mm or 25mm conduit and nuts. Nuts must be installed to ensure IP rating.


4.For safety, a 7mm diameter hole is provided to padlock the lever in the off position.


5.All units conform to iec60947-3.


6.High quality molding materials, chemical resistance and UV protection.


7.The standard colors are gray and white.





Product Application



The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.

250V 1P Weatherproof Outdoor Isolating Switch Australian standard 0





Packaging & Delivery



 Lead Time  Normally 20 days after received your fund, but mostly depends on   your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port   please kindly advise and the extra inland transportation freight will   be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express
