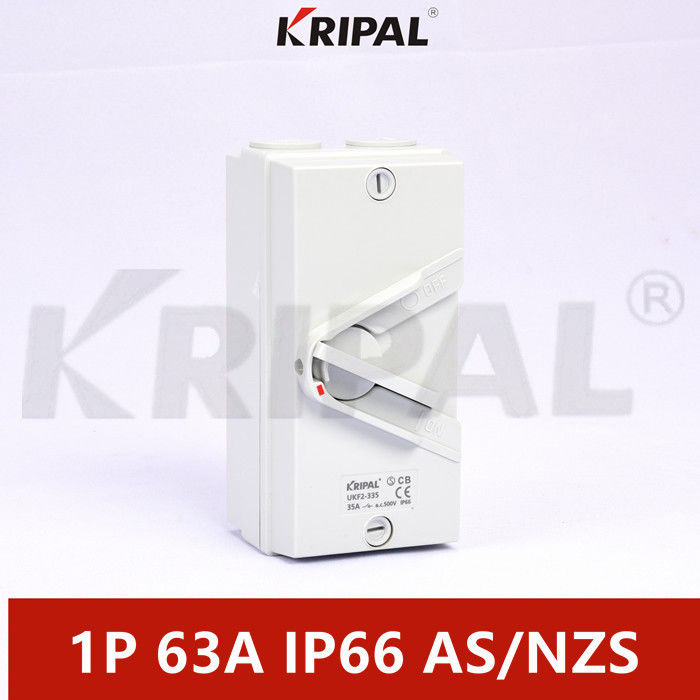

63A 1Pole IP66 Industrial Outdoor Waterproof Isolating Switch
Product Summary
Product Details
Product Description
63A 1Pole IP66 Industrial Outdoor Waterproof Isolating Switch
Product Description
| Brand Name | Purple Horn |
| Model | UKF1,UKF2,UKF3,UKF4 |
| Type | Standard Grounding |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,35A,63A |
| Frequency | 50/60Hz |
| Rated Voltage | 250V/500V |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
Product Advantage
The waterproof isolation switch has super waterproof and dustproof functions, which can effectively prevent the entry of dust and oil, and will not affect the performance of the product in the case of rain or strong water spray; at the same time, it has corrosion resistance, UV resistance, cold resistance, high temperature resistance, Anti-aging and other features can solve your needs for safe electricity use in harsh outdoor environments such as rain, dust, freezing, high temperature, and strong ultraviolet rays. Weather-resistant isolation switches have a wide range of applications and are suitable for any outdoor application conditions.
Product Feature

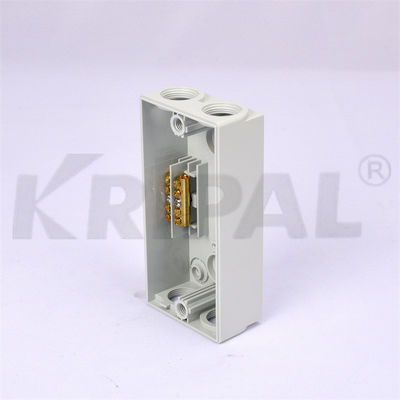

1. The installation mechanism of the junction box of switch base provides a larger and simpler connection position.
2. The grounding and neutral connecting rod are installed with double fastening screws, which can effectively fix all cables on the junction box, and clamp reliably to prevent liquid leakage
3. The safety is higher, the switch is installed in the metal structure insulation cap, the insulating cap covers the foundation installs the bolt, prevents the contact field cable insulation cover to be able to install reliably on the metal structure switch, carries on the panel cover and the bottom two plastic screws, can completely avoid the leakage.
4. Each device is equipped with threaded pipe joints and threaded reducer, which are used to connect 25mm or 20mm pipes and nuts. Nuts are required to ensure IP level.
5. The impact resistant base and cover plate can withstand severe impact under almost all installation conditions. There is a weatherproof waterproof sealing ring between the base and the cover plate.
6. For safety, a hole with a diameter of 7mm in the OFF position is used in a heavily machined cast baffle to padlock the control lever during maintenance or overhaul. The deep-mounted baffle is secured to prevent accidental switch operation of the joysticks.
7. All products comply with IEC60947-3 standard and provide safe and reliable control of power supply in any harsh working environment.
8. Appearance color: the standard color of the switch is gray and white.
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
