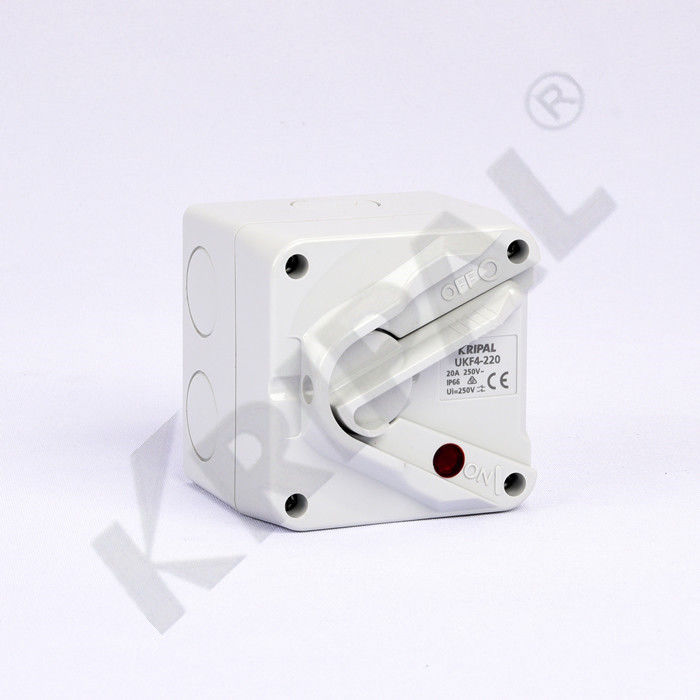

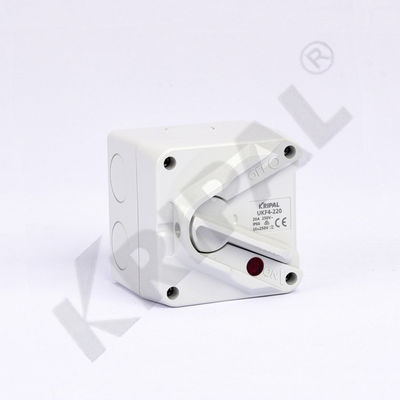

1Pole 10A IP66 Weatherproof Isolator Switch Australian standard

Product Description

Waterproof isolating switch has super waterproof and dustproof function, can effectively prevent the entry of dust and oil, in case of rain or strong water spraying will not affect the performance of the product; At the same time, it has the characteristics of anti-corrosion, anti-ultraviolet, cold, high temperature, anti-aging, etc. It can solve your needs for safe electricity use in harsh outdoor environment such as rain, dust, freezing, high temperature and strong ultraviolet light. The weather-resistant isolating switch has a wide range of applications and is suitable for any outdoor application conditions.

Product Feature

1. The connecting rod for grounding and zero connection is installed with double tightening screws, which can effectively fix all cables on the junction box and clamp reliably to prevent leakage

2.The insulation cap covers the base mounting screw to prevent contact with the live cable. The insulation cap can be reliably installed on the metal structure switch. The combination of two plastic screws of the WHD panel cover and the base can fully avoid electricity leakage.

3. Each device is provided with threaded conduit joint and threaded reducer for connecting 25mm or 20mm conduit and nut; Nuts must be installed to ensure IP rating.

4. Impact resistant base and cover can withstand severe impact under almost all installation conditions. A weather resistant waterproof sealing ring separates the base and cover.

5. For safety purposes, use 7mm diameter holes in heavily machined cast baffles to lock the joystick during maintenance or overhaul. Deep-mounted baffle mounts to prevent accidental switch operation of the control handle.

6. Appearance color: the standard color of the switch is gray and white.

Product Application

Products are widely used in smelting, chemicals, power electronics, airports, railways, construction sites, mines, quarries, water supply and drainage treatment plants, automobile manufacturing, ports, docks, shopping malls, hotels and other places. When used as an overhaul switch and a safety switch, the positions of "on" and "off" should be clearly marked, and a padlock hole should be provided. The padlock can be installed in the "off" position; if it is to be locked in the "open" position, just Lock a hole; to ensure user safety.

Packaging & Shipping

Our service

1.Strong production capacity and strict quality control system;

2.Please kindly inform us which items you are interested&the reasonable price will be provided you upon receipt of your new inquiry ASAP;

3.Answer your question detailed;

4.OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory;

5.Solved the problem with you during using our products.
