Single Phase IP67 48V 32Amp 3P Low Voltage Plug IEC standard 12h
Product Summary
Product Details
Single Phase Industrial Plug And Socket
,IEC309 Industrial Plug And Socket
Product Description

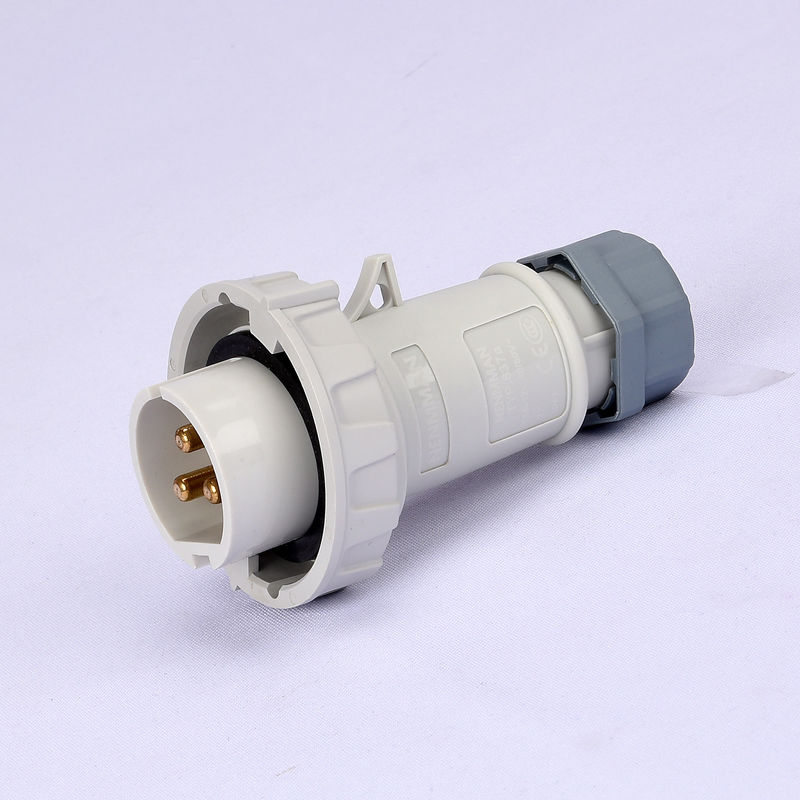

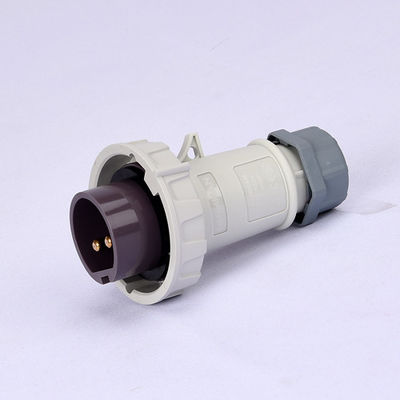

Single Phase IP67 48V 32Amp 3P Low Voltage Plug IEC standard
| Current | Position | Voltage | Color | Poles | Model |
| 16A | / | 20-25V | Purple | 2P | UKS-A1263 |
| / | 20-25V | Purple | 2P+E | UKS-A1363 | |
| 12h | 40-50V | White | 2P | UKS-A1264-12 | |
| 12h | 40-50V | White | 3P+E | UKS-A1364-12 | |
| 32A | / | 20-25V | Purple | 2P | UKS-A2263 |
| / | 20-25V | Purple | 2P+E | UKS-A2363 | |
| 12h | 40-50V | White | 2P | UKS-A2264-12 | |
| 12h | 40-50V | White | 3P+E | UKS-A2364-12 |
| Product | Low Voltage Plug |
| Rated current | 16A,32A |
| No. of poles | 2P,2P+E |
| Voltage | 20-25V;40-50V |
| Protection degree | IP67 |
| Power type | Single Phase |
| Conductor cross-sectional area (mm2) | 1.5-2.5(16A), 4-6(32A) |
| Material | NYLON,PA, PC, Copper |
| Warranty | one and a half years |
Product Feature
1.Perfect performance
All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
Perfect for demanding customers.
2.Perfect productivity
The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.
3.Perfect safety
Safety is also very important. By choosing Purple Horn Plugs and Sockets you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.
Applications
Protective extra-low voltage is a preventive measure for use under extreme conditions, the rated voltage (AC) is limited by max 50V.
Special working conditions (conductive environment e.g. in or on boilers, pipelines, containers, metal frames or limited freedom of motion) require the use of extra-low voltage plugs and sockets.
Certification
We can provide full range of industrial plug socket
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| Box | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
