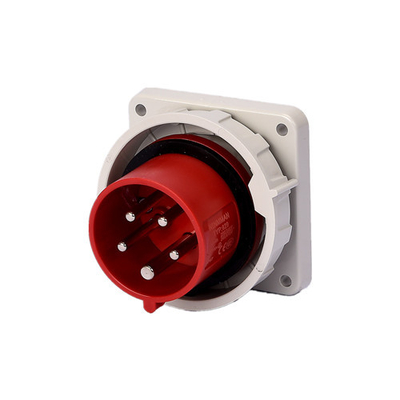

Industrial 4P 32A Panel Mounted Plug High Temperature Resistant
Product Specification
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
CE
Model Number:
UKS-E246-6
Minimum Order Quantity:
1000 pcs
Price:
negotiable
Standard Packaging:
each unit packed in a individual box
Delivery Time:
20 days and depends on ordering quantity
Payment Terms:
T/T,L/C, D/P
Supply Ability:
50000 pcs per month
Product Summary
4P 32A Panel Mounted Plug highounted Plug high temperature resistant Current Position Voltage Color Poles Model 16A 4h 110-130V Yellow 2P+E UKS-E136-4 6h 220-250V Blue 2P+E UKS-E136-6 9h 380-415V Red 2P+E UKS-E136-9 4h 110-130V Yellow 3P+E UKS-E146-4 9h 220-250V Blue 3P+E UKS-E146-9 6h 380-415V Red ...
Product Details
Highlight:
4P 32A Panel Mounted Plug
,IP67 Heat Resistant Panel Mounted Plug
Rated Current:
16A,32A
Rated Voltage:
110V,220V,380V
Color:
Blue,Red,Yellow
IP Rating:
IP67
Material:
Nylon,PA,PC,Copper
Type:
Electrical Plug
Frequency:
50/60Hz
Advantage:
Waterproof,Dustproof,Damp-proof
Product Description
4P 32A Panel Mounted Plug highounted Plug high temperature resistant
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-E136-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-E136-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-E136-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-E146-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-E146-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-E146-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-E156-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-E156-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-E156-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-E236-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-E236-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-E236-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-E246-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-E246-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-E246-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-E256-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-E256-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-E256-6 |
| Product | Industrial Plug |
| Rated current | 16A,32A |
| No. of poles | 2P+E,3P+E,3P+N+E |
| Voltage | 110V;220V-250V;380V-415V |
| Protection degree | IP44 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON, PA, PC, Copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
Product Feature
Safety,Environmental,Economic,Multi-function,Durable,Timesaving
Standard plug,Standard socket.
Provide different series products for different environment.
Resistance to severs weather and ageing.
Good space stability and accuracy.
Effectively prevent power outages and leakage.
Product Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| Box | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
