| Place of Origin: | CHINA |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS-E334-6 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T,L/C, D/P |
| Supply Ability: | 50000 pcs per month |
| Type: | Electrical Plug | IP Rating: | IP44 |
|---|---|---|---|
| Material: | Nylon,PA,PC,Copper | Frequency: | 50/60Hz |
| Rated Current: | 63A | Feature: | Waterproof,Convenient,Durable |
| Standard: | IEC Standard | ||
| High Light: | Mounted 63 Amp 3 Phase Socket,IP44 63 amp 3 Phase Socket,Industrial 63 amp 3 Phase Socket |
||
| Current | Position | Voltage | Color | Poles | Model |
| 63A | 4h | 110-130V | Yellow | 2P+E | UKS-E334-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-E334-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-E334-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-E344-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-E344-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-E344-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-E354-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-E354-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-E354-6 |

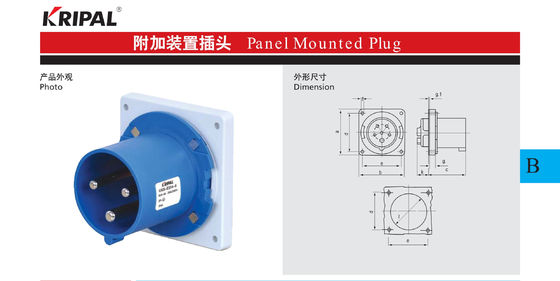

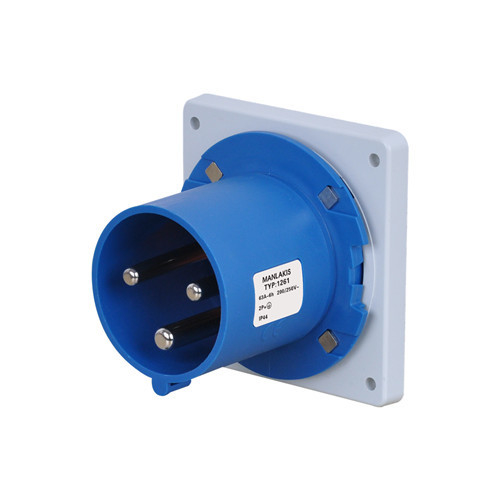

| Product | Panel Mounted Plug |
| Rated current | 63A |
| No. of poles | 2P+E,3P+E,3P+N+E |
| Voltage | 110V-130V;220V-250V;380V-415V |
| Protection degree | IP44 |
| Power type | Single Phase,Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON, PA, PC, Copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
1. Safe and Reliable
①Rated voltage is indicated by the color of the shell, which is clear at a glance
②The diameter pole number of the grounding contact of the same specification product is different to prevent accidental insertion
③Protection against electric shock
④High protection level:IP44 andIP67
⑤With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.
2.Durable
①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.
②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant
③Resistance to pull and plug under longstanding usage.
3. Strong universality
General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Q:What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:What is your terms of delivery?
A: EXW, FOB, CIF.
Q: What is your sample policy?
A: Sample is available ,but sample should be paied in advance. The cost of sample will be refund after further order.
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
