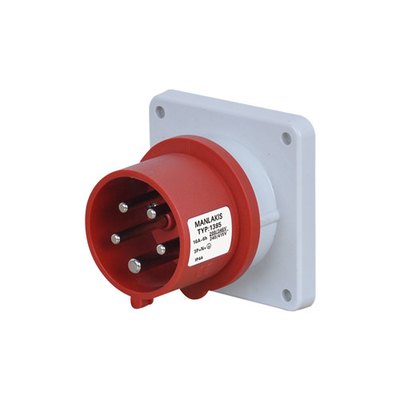

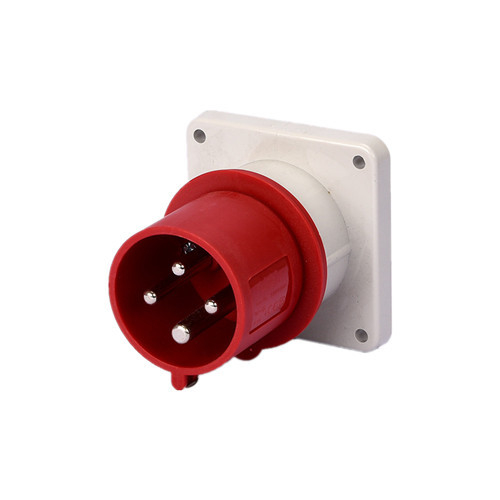

4 Pole 32 Amp 380V IP44 Industrial Panel Mounted Plug Dustproof
Product Summary
Product Details
IP44 Panel Mounted Industrial Plug Socket
,380V Nickel Plated Industrial Plug Socket
Product Description
4 Pole 32 Amp 380V IP44 Industrial Panel Mounted Plug Dustproof
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-E134-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-E134-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-E134-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-E144-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-E144-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-E144-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-E154-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-E154-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-E154-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-E234-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-E234-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-E234-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-E244-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-E244-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-E244-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-E254-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-E254-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-E254-6 |
| Product | Panel Mounted Industrial Plug |
| Rated current | 16A,32A |
| No. of poles | 2P+E, 3P+E 3P+N+E |
| Voltage | 110V-130V;220V-250V; 380V-415V |
| Protection degree | IP44,IP67 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON,PA, PC, copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
Product Feature
Safety,Environmental,Economic,Multi-function,Durable,Timesaving
Standard plug,Standard socket.
Provide different series products for different environment.
Resistance to severs weather and ageing.
Good space stability and accuracy.
Effectively prevent power outages and leakage.
Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
