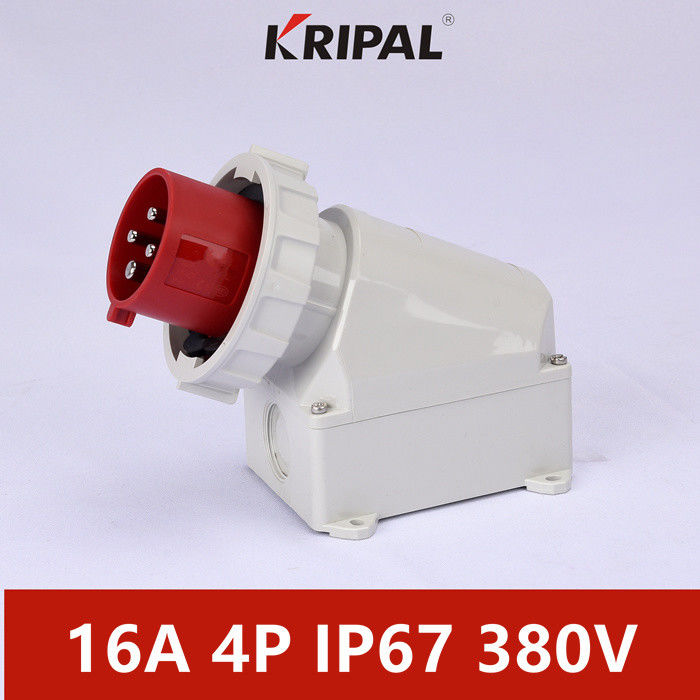

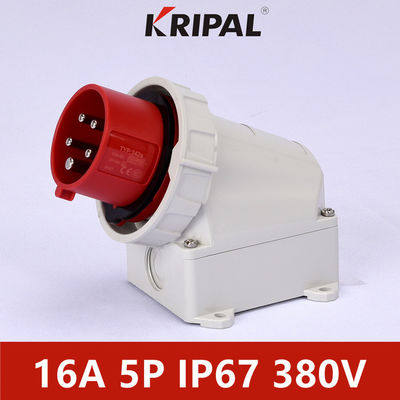

IEC 4 Pole IP67 380V 16A Industrial Wall Mounted Plug Waterproof
Product Summary
Product Details
380V 16 Amp Wall Mounted Socke
,IEC 16 Amp Wall Mounted Socket
Product Description
IEC 4 Pole IP67 380V 16A Industrial Wall Mounted Plug Waterproof
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-D136-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-D136-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-D136-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-D146-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-D146-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-D146-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-D156-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-D156-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-D156-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-D236-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-D236-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-D236-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-D246-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-D246-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-D246-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-D256-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-D256-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-D256-6 |
| Product | Industrial Plug |
| Rated current | 16A,32A |
| No. of poles | 2P+E, 3P+E 3P+N+E |
| Voltage | 110V;220V-250V; 380V-415V |
| Protection degree | IP67 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON,PA, PC, copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
| Warranty | one and a half year |
Accessory protective cover can be added
Advantage:
It has the advantages of waterproof, dustproof, anti-corrosion, flame retardant, high temperature resistance, anti-aging, great toughness, good impact resistance, high finish and large current soft contact.
Applications
Industrial plug and socket,connector is a new generation connector appratus for power connecting,has the feature such as security & reliability. They are used widly in the place such as steel smelt,petrochemical processing,electric power,electronic,railway,building ground,airport,mine and so on.
Certification
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
|
Plug & Socket |
Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| Box | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Service
1. Strong production capacity and strict quality control system;
2. Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Well-trained and experienced staffs to answer all your inquires;
4. After-sale tracking service for all of our clients;
5. OEM & ODM are available; there is an our own mould tooling center in Purple Horn factory.
Our company
Purple Horn Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in , , the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "Purple Horn" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
