Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof

Product Details:

Place of Origin:	China
Brand Name:	KRIPAL
Certification:	CE
Model Number:	UKS-D244-6

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	negotiable
Packaging Details:	Standard Exporting Package
Delivery Time:	20 days and depends on ordering quantity
Payment Terms:	T/T, L/C,, D/P
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

Material:	Nylon,PA,PC,Copper	IP Protection:	IP44
Pins Available:	3P,4P,5P	Voltage:	110V,220V,380V
Frequency:	50/60 Hz	Feature:	Waterproof,Convenient,Durable
Highlight:	32A IEC Panel Mount Socket , Waterproof IEC Panel Mount Socket

Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof

Current	Position	Voltage	Color	Poles	Model
16A	4h	110-130V	Yellow	2P+E	UKS-D134-4
	6h	220-250V	Blue	2P+E	UKS-D134-6
	9h	380-415V	Red	2P+E	UKS-D134-9
	4h	110-130V	Yellow	3P+E	UKS-D144-4
	9h	220-250V	Blue	3P+E	UKS-D144-9
	6h	380-415V	Red	3P+E	UKS-D144-6
	4h	110-130V	Yellow	3P+N+E	UKS-D154-4
	9h	220-250V	Blue	3P+N+E	UKS-D154-9
	6h	380-415V	Red	3P+N+E	UKS-D154-6
32A	4h	110-130V	Yellow	2P+E	UKS-D234-4
	6h	220-250V	Blue	2P+E	UKS-D234-6
	9h	380-415V	Red	2P+E	UKS-D234-9
	4h	110-130V	Yellow	3P+E	UKS-D244-4
	9h	220-250V	Blue	3P+E	UKS-D244-9
	6h	380-415V	Red	3P+E	UKS-D244-6
	4h	110-130V	Yellow	3P+N+E	UKS-D254-4
	9h	220-250V	Blue	3P+N+E	UKS-D254-9
	6h	380-415V	Red	3P+N+E	UKS-D254-6

Specifications

Product	Industrial Plug
Rated current	16A,32A
No. of poles	2P+E,3P+E,3P+N+E
Voltage	110V;220V-250V; 380V-415V
Protection degree	IP44,IP67
Power type	Single Phase, Three Phase
Conductor cross-sectional area (mm2)	1.5-4(16A), 2.5-10(32A)
Material	NYLON,PA, PC, copper
Color	110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black)

Accessory protective cover can be added

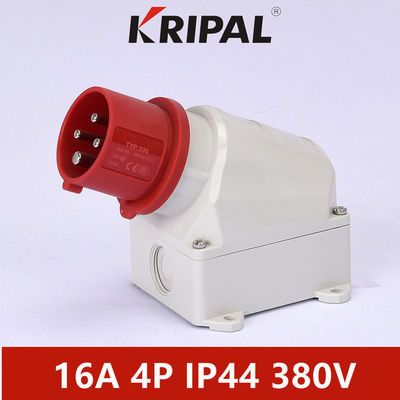

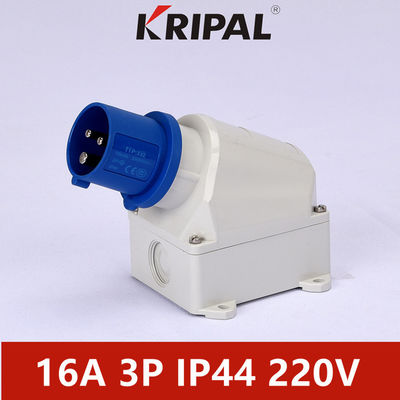

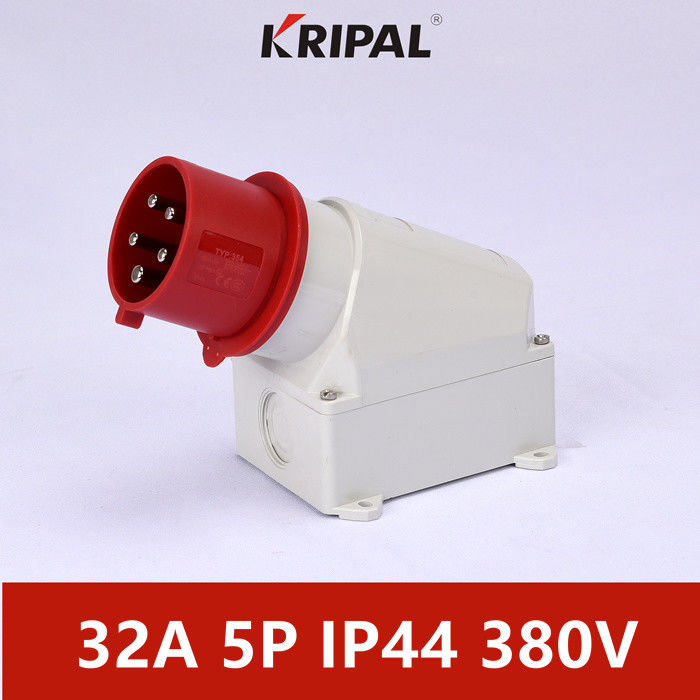

Industrial Three Phase 16A 32A IP44 IEC Panel Mount Socket Waterproof 1

Advantage

It has the advantages of waterproof, dustproof, anti-corrosion, flame retardant, high temperature resistance, anti-aging, great toughness, good impact resistance, high finish and large current soft contact

Description

In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.

Product Applications

Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.

Certification

We can provide full range of industrial plug socket:

Protection	IP44/IP67
Current	16A, 32A, 63A, 125A, 250A, 420A
Pins	2P+E, 3P+E, 3P+N+E
Voltage	20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
Plug & Socket	Low voltage plug socket <50V
	Industrial plug, industrial socket
	Wall mounted socket, wall mounted plug
	Panel mounted socket, panel mounted plug
	Interlocked switched socket
Box	Industrial portable socket box
	Industrial plastic socket box
	Power maintenance box (stainless)
	Power maintenance box (plastic)
	Industrial lighting box (plastic)
	Industrial lighting box (metal)
	Distribution box for exhibition box
	T. V / Film power distribution box
	Distribution box with power and compress air outlet
Accessories	Cap for 16A, 32A, 63A, 125A plug
