IP67 Three Phase 16A Industrial Connector Dustproof 110V 220V 380V
Product Summary
Product Details
Three Phase Ip67 16a Socket
,Universal Ip67 16a Socket
,Dustproof Ip67 16a Socket
Product Description

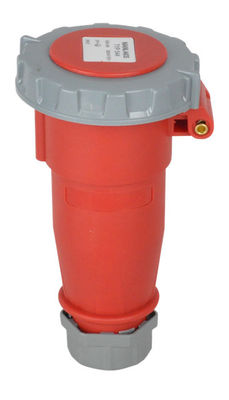

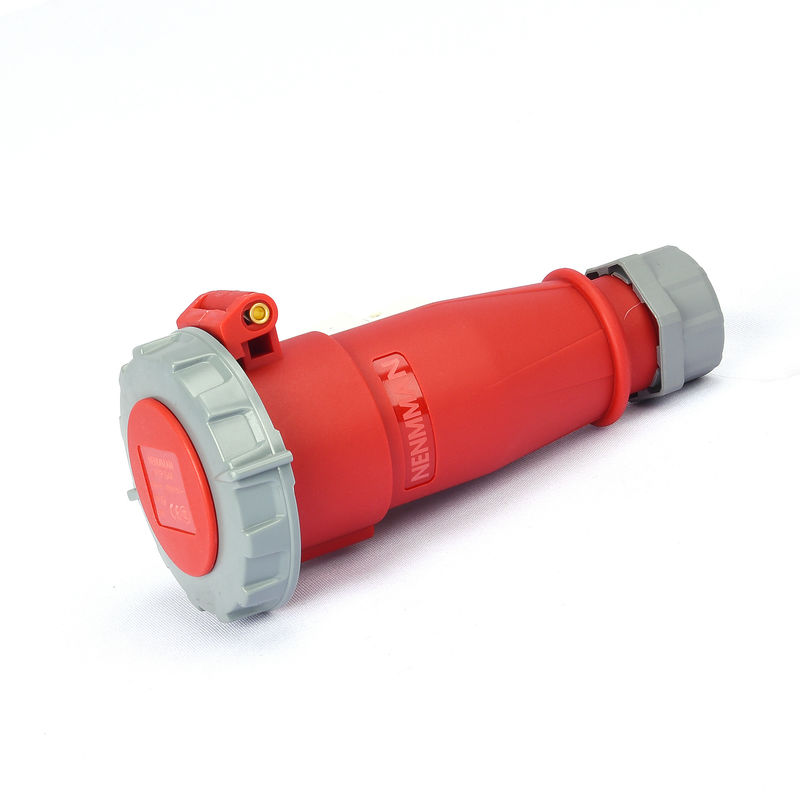

IP67 Three Phase 16A Industrial Connector Dustproof 110V 220V 380V
The main role of industrial connectors is to make the line smooth, so that the cable is sealed, and ensure the insulation level of the cable junction, so that it can run safely and reliably if the seal is poor, not only will cause oil leakage caused by oil-soaked paper dry, but also moisture will invade the cable internal, so that the insulation performance decline.
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-C136-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-C136-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-C136-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-C146-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-C146-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-C146-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-C156-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-C156-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-C156-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-C236-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-C236-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-C236-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-C246-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-C246-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-C246-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-C256-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-C256-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-C256-6 |
Specifications
|
Product |
Industrial Connector |
|
Rated current |
16A,32A |
|
No. of poles |
2P+E, 3P+E 3P+N+E |
|
Voltage |
220V-250V; 380V-415V |
|
Protection degree |
IP67 |
|
Power type |
Single Phase, Three Phase |
|
Conductor cross-sectional area (mm2) |
1.5-4(16A), 2.5-10(32A) |
|
Material |
NYLON, PA, PC, copper |
|
Color |
110V(yellow) 220V,230V(blue) |
Feature
Safety,Environmental,Economic,Multi-function,Durable,Timesaving
Standard plug,Standard socket.
Provide different series products for different environment.
Resistance to severs weather and ageing.
Good space stability and accuracy.
Effectively prevent power outages and leakage.
Product Applications
Applied to Power generation equipment
Applied to Film and TV lighting and audio equipment and engineering
Applied to Mechanical equipment: food machinery, mobile welding machine, etc.
Applied to Construction projects: new factory (workshop renovation),subway,etc
Applied to Electronic instrument
Applied to Energy generation (solar, wind and nuclear)
Applied to Transportation equipment
Applied to Measuring apparatus
