Place of Origin: | CHINA |
Brand Name: | KRIPAL |
Certification: | CE |
Model Number: | UKS2-C234-6 |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T,L/C,D/P |
Supply Ability: | 5000 pcs per month |
IP Rating: | IP44 | Material: | Nylon,PA,PC,Copper |
---|---|---|---|
Frequency: | 50/60Hz | Rated Current: | 16A,32A |
Standard: | IEC Standard | Feature: | Waterproof,Durable,Flame Retardant |
High Light: | 220V 16A Male Socket,Three Phase 16A Male Socket,Waterproof 16A Male Socket Sleeve |
Current | Position | Voltage | Color | Poles | Model |

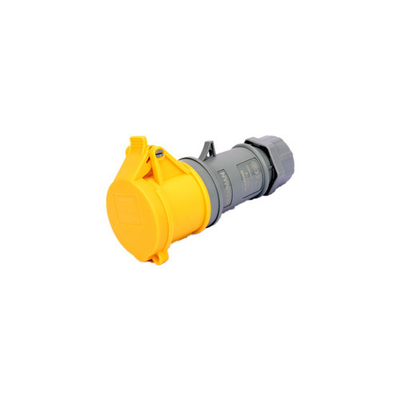

16A | 4h | 110-130V | Yellow | 2P+E | UKS2-C134-4 |

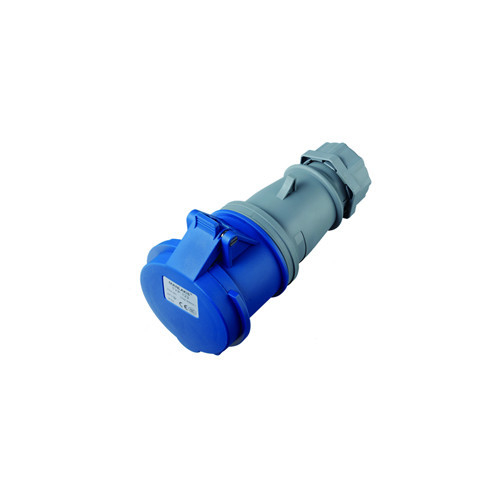

6h | 220-250V | Blue | 2P+E | UKS2-C134-6 | |
9h | 380-415V | Red | 2P+E | UKS2-C134-9 | |
4h | 110-130V | Yellow | 3P+E | UKS2-C144-4 | |
9h | 220-250V | Blue | 3P+E | UKS2-C144-9 | |
6h | 380-415V | Red | 3P+E | UKS2-C144-6 | |
4h | 110-130V | Yellow | 3P+N+E | UKS2-C154-4 | |
9h | 220-250V | Blue | 3P+N+E | UKS2-C154-9 | |
6h | 380-415V | Red | 3P+N+E | UKS2-C154-6 | |
32A | 4h | 110-130V | Yellow | 2P+E | UKS2-C234-4 |
6h | 220-250V | Blue | 2P+E | UKS2-C234-6 | |
9h | 380-415V | Red | 2P+E | UKS2-C234-9 | |
4h | 110-130V | Yellow | 3P+E | UKS2-C244-4 | |
9h | 220-250V | Blue | 3P+E | UKS2-C244-9 | |
6h | 380-415V | Red | 3P+E | UKS2-C244-6 | |
4h | 110-130V | Yellow | 3P+N+E | UKS2-C254-4 | |
9h | 220-250V | Blue | 3P+N+E | UKS2-C254-9 | |
6h | 380-415V | Red | 3P+N+E | UKS2-C254-6 |
Product |
Industrial Connector |
Rated current |
16A,32A |
No. of poles |
2P+E, 3P+E 3P+N+E |
Voltage |
110-130V;220V-250V; 380V-415V |
Protection degree |
IP44 |
Power type |
Single Phase, Three Phase |
Conductor cross-sectional area (mm2) |
1.5-4(16A), 2.5-10(32A) |
Material |
NYLON, PA, PC, copper |
Color |
110V(yellow) 220V,230V(blue) |
The main role of industrial connectors is to make the line smooth, so that the cable is sealed, and ensure the insulation level of the cable junction, so that it can run safely and reliably if the seal is poor, not only will cause oil leakage caused by oil-soaked paper dry, but also moisture will invade the cable internal, so that the insulation performance decline.
1. Delivery time: 20 working days for bulk order and depend on ordering quantity
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.
7. Payment: usually L/C, T/T,
8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
