IEC standard IP44 380V 16A 32A Sleeve Industrial Plug Waterproof
Product Summary
Product Details
4P Industrial Plug And Socket
,Waterproof 32A Industrial Plug And Socket
,CEE Industrial Plug And Socket
Product Description

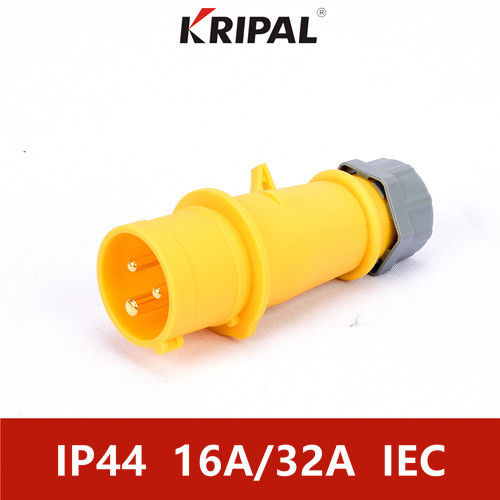

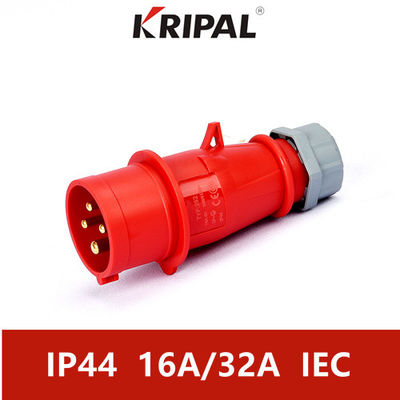

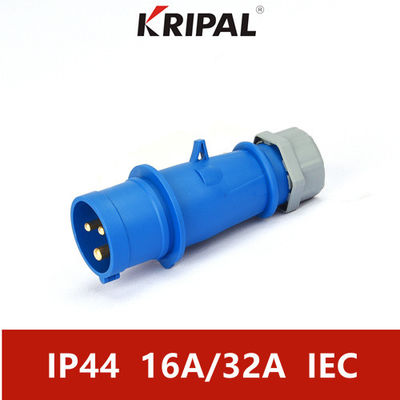

IEC standard IP44 380V 16A 32A Sleeve Industrial Plug Waterproof
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS2-A134-4 |
| 6h | 220-250V | Blue | 2P+E | UKS2-A134-6 | |
| 9h | 380-415V | Red | 2P+E | UKS2-A134-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS2-A144-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS2-A144-9 | |
| 6h | 380-415V | Red | 3P+E | UKS2-A144-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS2-A154-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS2-A154-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS2-A154-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS2-A234-4 |
| 6h | 220-250V | Blue | 2P+E | UKS2-A234-6 | |
| 9h | 380-415V | Red | 2P+E | UKS2-A234-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS2-A244-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS2-A244-9 | |
| 6h | 380-415V | Red | 3P+E | UKS2-A244-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS2-A254-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS2-A254-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS2-A254-6 |
|
Product |
Industrial Plug |
|
Rated current |
16A,32A |
|
No. of poles |
2P+E,3P+E,3P+N+E |
|
Voltage |
110V;220V-250V;380V-415V |
|
Protection degree |
IP44,IP67 |
|
Power type |
Single Phase, Three Phase |
|
Conductor cross-sectional area (mm2) |
1.5-4(16A), 2.5-10(32A) |
|
Material |
NYLON,PA, PC, copper |
|
Color |
110V(yellow) 220V,230V(blue) |
Feature
Safety,Environmental,Economic,Multi-function,Durable,Timesaving
Standard plug,Standard socket.
Provide different series products for different environment.
Resistance to severs weather and ageing.
Good space stability and accuracy.
Effectively prevent power outages and leakage.
Description
In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.
Certification
We can provide full range of industrial plug socket
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| Box | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
