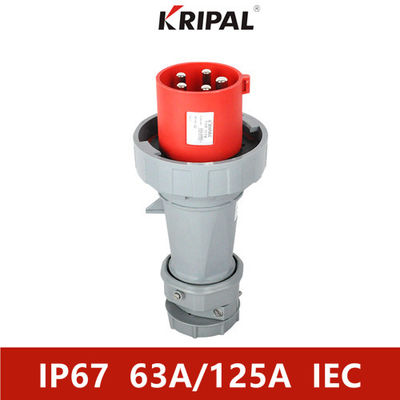

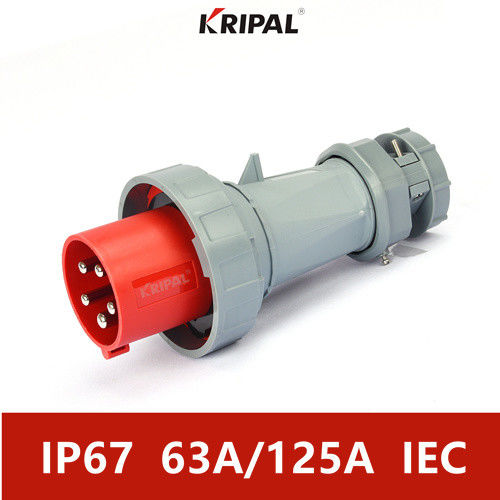

IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard

IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard

  • IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard
  • IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard
  • IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard
  • IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard
IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-A346-6
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T,L/C, D/P
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 63A,125A Type: Electrical Plug
Material: Nylon,PA,PC,Copper Protection Degree: IP67
Voltage: 110V-130V;220V-240V;380V-415V Frequency: 50/60Hz
High Light:

16A Industrial Plug And Socket

,

IP44 Industrial Plug And Socket

,

230V 3P Industrial Plug And Socket

IP67 63A 125A 380V Industrial Plug And Socket IEC Standard







Current Position Voltage Color Poles Model
63A 4h 110-130V Yellow 2P+E UKS-A336-4
6h 220-250V Blue 2P+E UKS-A336-6
9h 380-415V Red 2P+E UKS-A336-9
4h 110-130V Yellow 3P+E UKS-A346-4
9h 220-250V Blue 3P+E UKS-A346-9
6h 380-415V Red 3P+E UKS-A346-6
4h 110-130V Yellow 3P+N+E UKS-A356-4
9h 220-250V Blue 3P+N+E UKS-A356-9
6h 380-415V Red 3P+N+E UKS-A356-6
125A 4h 110-130V Yellow 2P+E UKS-A436-4
6h 220-250V Blue 2P+E UKS-A436-6
9h 380-415V Red 2P+E UKS-A436-9
4h 110-130V Yellow 3P+E UKS-A446-4
9h 220-250V Blue 3P+E UKS-A446-9
6h 380-415V Red 3P+E UKS-A446-6
4h 110-130V Yellow 3P+N+E UKS-A456-4
9h 220-250V Blue 3P+N+E UKS-A456-9
6h 380-415V Red 3P+N+E UKS-A456-6

IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard 0





Product Feature

1. Safe and Reliable
 ①Rated voltage is indicated by the color of the shell, which is clear at a glance
②The diameter pole number of the grounding contact of the same specification product is different to prevent accidental insertion
③Protection against electric shock
④High protection level:IP44 andIP67
⑤With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.

2.Durable
①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.

②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant

③Resistance to pull and plug under longstanding usage.

3. Strong universality
 General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.







Specifications

 Product

 Industrial Plug

 Rated current

 16A,32A

 No. of poles

 2P+E, 3P+E, 3P+N+E

 Voltage

 220V-250V;380V-415V

 Protection degree

 IP67

 Power type

 Single Phase,Three Phase

 Conductor cross-sectional area (mm2)

 1.5-4(16A),2.5-10(32A)

 Material

 NYLON,PA,PC,Copper

 Color

 110V(yellow) 220V,230V(blue)
 380V,415V,440V(red) 500V(black)







Application

Industrial plug and socket,connector is a new generation connector appratus for power connecting,has the feature such as security & reliability. They are used widly in the place such as steel smelt,petrochemical processing,electric power,electronic,railway,building ground,airport,mine and so on.





Certification

IP67 Three Phase 63A 125A 380V Industrial Plug And Socket IEC Standard 1







Service

1. Delivery time: 20 working days for bulk order and depend on ordering quantity


2. Strong production capacity and strict quality control system;


3. Your inquiry and problems related to our products or prices will be replied in 24 hours;



4. Well-trained and experienced staffs to answer all your inquires;

5. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.

6. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
