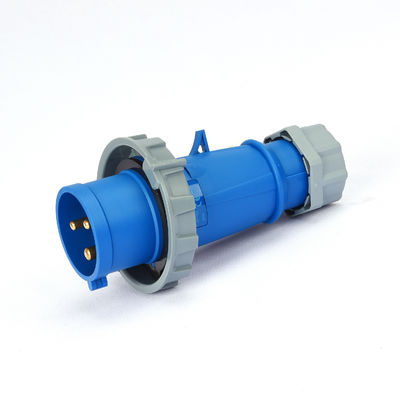

Single Phase IP44 3 Pole 50V IEC309 Low Voltage Plugs
Product Summary
Product Details
IEC309 Low Voltage Plugs
,50V Low Voltage Plugs
,IP44 Low Voltage Plugs
Product Description
50/60 Hz Indoor 3 Pole Low Voltage Plugs And Sockets 40V 50V , IEC309 standard
Advantages:
The design and material used have continuously been improved to meet the customer’s requirements, and to take the environmental aspects into consideration.
Specifications:
|
Rated current |
16A, 32A |
|
No. of poles |
2P, 2P+E |
|
Voltage |
20V-25V, 40-50V |
|
Protection degree |
IP44 |
|
Power type |
single phase |
|
Conductor cross-sectional area (mm2) |
1.5-4(16A), 4-6(32A) |
|
Material |
NYLON PA6, PC, copper |
|
Warranty |
5years |
Applications:
Protective extra-low voltage is a preventive measure for use under extreme conditions, the rated voltage (AC) is limited by max. 50V.
Special working conditions (conductive environment e.g. in or on boilers, pipelines, containers, metal frames or limited freedom of motion) require the use of extra-low voltage plugs and sockets.
Plastic material:
Our plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:
· excellent impact resistance combined with high rigidity and solidity,
· high thermal stability (self-extinguishing),
· very good insulating qualities,
· high disruptive strength,
· high abrasion resistance,
· high weathering resistance,
· very good chemical resistance to various chemicals,
· free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
TEMPERATURES
IEC/EN 60309 applies to CEE plugs and sockets which are used at an ambient temperature that does not normally exceed the range from -25°C to +40°C.
Purple Horn CEE plugs and sockets themselves have an operating temperature of -25°C to +80°C (100°C for 1 hour). The temperature of the contacts is allowed to rise by 50°C under the test conditions set out.
Perfect performance
All Plugs and Sockets in our range comply with high standards of quality meeting different required tasks. Some have advanced features while others have a straight forward functionality.
Perfect for demanding customers.
Perfect productivity
The result is that you can rely on all our Plugs and Sockets to help you maintain a high up-time in your operations. No unscheduled or unwanted interruptions, allowing you a high degree of flexibility.
Perfect safety
Safety is also very important. By choosing Purple Horn Plugs and Sockets you minimize the risk of short circuits. You also ensure maximum personal safety for anyone nearby or around your equipment.
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| BOX | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Our company:
Purple Horn have further improved the performance and design of their wide range of industrial plugs and sockets that comply with IEC309 standard. Special attention has been paid to the use of isolating materials and the treatment of metal components.
The outstanding mechanical characteristics of IEC309 Series plugs and sockets and their ability to withstand weathering and chemicals make them safe and reliable even in the most severe environmental conditions.
