| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS-A series |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Exporting Package |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pcs per month |
| Material: | NYLON PA6, PC, Copper | IP Protection: | IP44 IP67 |
|---|---|---|---|
| Pins Available: | 3 Pins 4 Pins 5pins | Voltage: | 220V-250V, 380V-415V |
| Current Range: | 16A, 32A | Type: | Industrial Plug |
| High Light: | 16A Industrial Plugs,IP44 Industrial Plugs,500V Industrial Plugs |
||

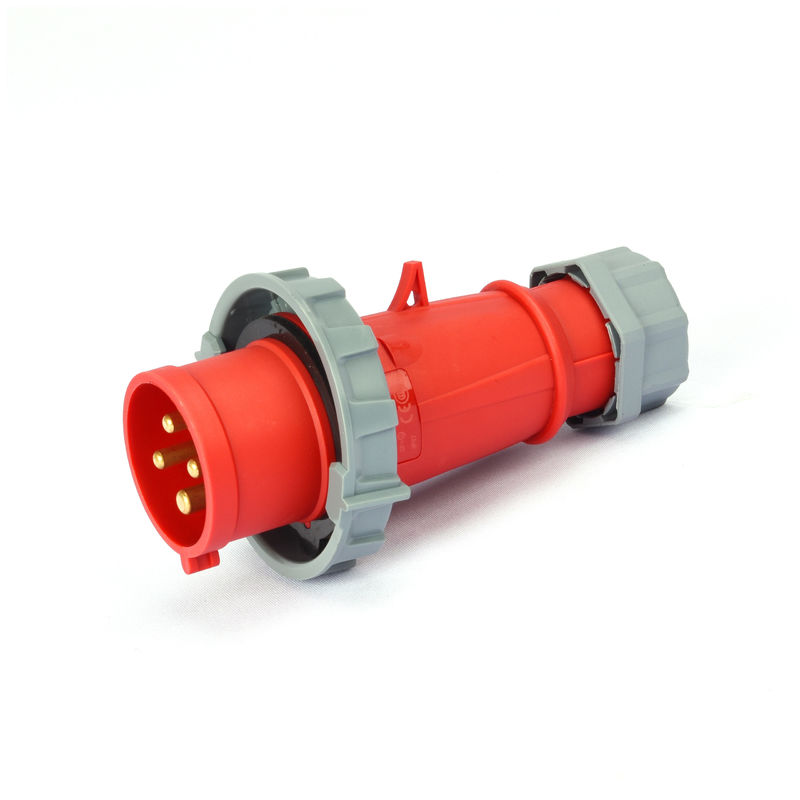

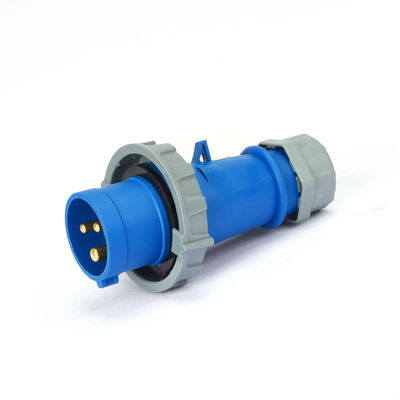

IP44 IP67 16A, 32A European Standard IEC 16A Industrial Plugs , Pin And Sleeve Electrical Connectors
Specifications:
|
Product |
Industrial Plug |
|
Rated Ampere |
16A, 32A, 63A, 125A |
|
No. of poles |
2P+E, 3P+E 3P+N+E |
|
Voltage |
220V-250V; 380V-4150V |
|
Protection degree |
IP67, IP67 |
|
Power type |
Single Phase, Three Phase |
|
Conductor cross-sectional area (mm2) |
1.5-4(16A), 2.5-10(32A) |
|
Material |
NYLON PA6, PC, copper |
|
Color |
RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Description:
The series of plugs and sockets manufactured by KRIPAL are made of plastic, halogen-free, with a great strength and are offered with various voltages, from 24 to 500V with 16 to 125A. The lids allow an opening angle of 180 degrees while the design confers strength and an aesthetic aspect, making the piece attractive. The body of this product, on the other hand, is delivered with an ergonomic design that improves handling, with the conduit entry being made through a cable gland, ensuring protection against water access to the internal parts.
The opening and closing of the piece is through clip-on devices placed on the sides, aligned to the same direction. Finally, all screws and the lid spring are protected against corrosion.
Classification:
Industrial Plugs are available in P+N+E (unbalanced single phase with neutral), 2P+E (balanced single phase), 3P+E (3 phase without neutral), and 3P+N+E (three phase with neutral).
Current ratings available are 16A, 32A, 63A, 125A, 250A, 420A
Voltage and other characteristics are represented by a color code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage). The different voltages have the earth pin of a larger diameter than the others, and located in different places depending on the voltage rating, making it impossible to mate.
Features:
1.PC plugs, sockets and couplings are constructed for extreme operating conditions.
They are of easy installation, long life and high reliability. They are widely used since many years ago in the
machine industry, crane industry, construction industry, trains and cars.
2. The material has extremely good insulation ability and it is unbreakable, wearable long-time durable up to
+120°C, resistant against oil, gasoline and salt water, almost non-aging, proof and splash-proof.
3.All units not only fit with the same system but also are fully compatible with units Of the same system of other
manufacturers, through groove and tongue, joint for same polarity,
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| BOX | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
