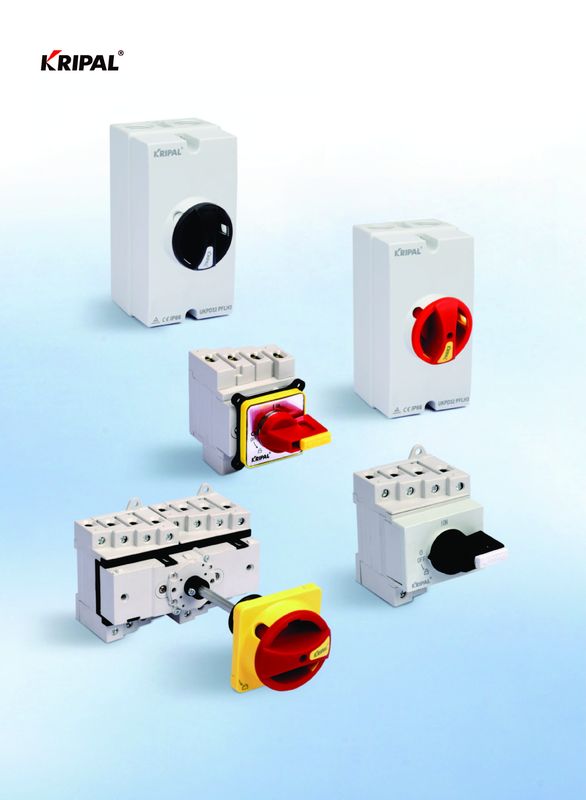

IP66 Waterproof Electrical Rotary Pv Isolator Switch 1000V 32A For Solar System
Product Specification
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
TUV
Model Number:
UKPD32
Minimum Order Quantity:
200
Price:
$14 Per unit
Standard Packaging:
30pcs per carton box use normal carton box
Delivery Time:
10-20days
Payment Terms:
T/T, L/C, D/P
Supply Ability:
2000pcs per 10 days
Product Summary
Place of Origin: , China Brand Name: Purple Horn Model Number: UKPD32 Max. Current: 32A Max. Voltage: 1500VDC Product name: DC isolator switch Certificate: CE ISO9001 Rated current: 32A Rated voltage: 600-1500V D.c Pole: 2p/4p Another name: dc isolator IP Degree: IP66 Rated insulation voltage: 1500V ...
Product Details
Highlight:
solar isolator switch
,solar dc isolator
MATERIAL:
PCS
MAX VOLTAGE:
1500V
MAX AMP:
32A
POLES:
2POLES 4POLES
Product Description
- Place of Origin:
-
, China
- Brand Name:
-
Purple Horn
- Model Number:
-
UKPD32
- Max. Current:
-
32A
- Max. Voltage:
-
1500VDC
- Product name:
-
DC isolator switch
- Certificate:
-
CE ISO9001
- Rated current:
-
32A
- Rated voltage:
-
600-1500V D.c
- Pole:
-
2p/4p
- Another name:
-
dc isolator
- IP Degree:
-
IP66
- Rated insulation voltage:
-
1500V
- Rated impulse withstand voltage:
-
8000V
- Name:
-
DC isolator switch
| Model | UKPD32 |
| Poles | 2P 4P |
| Standard | IEC60947.3,AS60947.3:2018 |
| Utilization Category | DC-PV2 / DC-21B |
| Rated Operational Voltage (Ue) | 500V,600V,800V,1000V |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Protection Degree | IP66 enclosure/IP20 switch body |
| Polarity | No Polarity |
| Certificate | TUV / CB |
