| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKPM5-4100 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pcs per month |
| Product: | Rotary Isolator Switch | Ampere: | 100A |
|---|---|---|---|
| Poles: | 4 Pole | Red/Yellow Rings: | Lockable |
| Color Of Handle: | Red / Black | Warranty: | 3 Years |
| High Light: | change over switch,electrical disconnect switch |
||

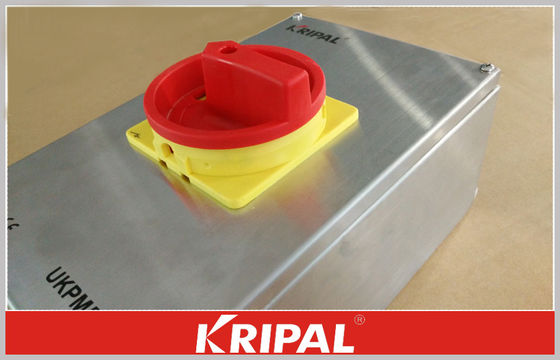

IP65 100A 4 Pole Stainless Steel Enclosed Multi Position Rotary Switch Disconnectors
Kripal is the ONLY ONE MANUFACTURER of Stainless Steel Enclosed isolators in China mainland.
Description:
Switch Disconnectors (Rotary Isolator Switch) provide the means to safely disconnect or isolate an item of electrical equipment from the power supply - primarily designed to provide a means of local isolation when an electrical item may need maintenance or repair.
Switch Disconnectors also
i) provide an effective clearance between the supply and the electrical load appropriate to the voltage applied,
ii) provide a means of "locking off" (padlocking),
iii) provide true indication of contact state,
iv) provide a safe electrical disconnection from the power supply even under fault conditions.
Specifications:
|
No. |
Tech Parameters |
requirement |
|
1. |
Rated voltage |
below 440V |
|
2. |
rated current |
100A |
|
3. |
frequency |
AC50HZ |
|
4. |
No. of poles |
4P |
|
5. |
No. of layers |
make as required with circuit diagram |
|
6. |
panel size |
64*64mm |
|
7. |
color of handle |
Black/red |
|
8. |
Working temperature |
-25°C~+40°C |
|
9. |
Working height |
≤2,000m |
|
10. |
Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.: humidity 90%----teperature20°C) |
|
11. |
Installation conditions |
pollution class III |
|
12. |
Mechanical life |
0.1*106times |
|
13. |
Electrical life |
0.03*106times |
|
14. |
Operative frequency |
120times/hour |
|
15. |
Transform angle |
90° |
Applications:
The rotary isolator switch disconeectors must be selected according to the following performance specifications:
1) According to motor switching capacity, when the switch is fitted in such a way that the operator may use it for operational ON and OFF switching.
2) The rating data always applies to 3 poles. When the motor rating is divided between 6 poles, such as for star-delta switching, a 6 pole switch can be used to control 1.73 times the rated power.
3) If the rotary isolator switch has a load-shedding Contact (LA), you can select the appropriate switch according to the uninterrupted current. The load-shedding contact is an auxiliary contact, which s closed in the ON position and opens early when witching off, so that a contactor located in the circuit takes over the switching duty and the maintenance/safety switch operates at zero load. When switching on, the load-shedding contact closes later than or at the same time as the main contacts.
Features:
• Safety switches are always housed in insulated enclosures and have an inscription saying "Safety Switch" on a bright orange label.
• Switches to be used for emergency stop switching have a red handle and yellow locking collar in accordance with STOP category O (as per IEC/EN 60204/VDE 0113).
• If the switch is not approved for emergency stop switching, both parts will be black
• The cover and handle are interlocked by fitting a padlock.
Optional:
a. Netural contacts
b. 1NO+1NC module
c. Color of handle and surroundings
Important safety notice
It is the responsibility of the person installing the electrical equipment to ensure that the installation meets the requirements of the IET wiring regulations and is therefore ‘fit for purpose'. Factors such as correct selection of components, cable sizing, protective devices and Earth bonding are all critical and should be checked prior to full testing and power-up. Any other regulations applicable to the equipment being installed such as the Machinery Directive and current health and safety legislation must also be adhered to. Terminals, including factory fitted, should be checked periodically to ensure correct tightness.
