3P 150A IP65 230V Locking Changeover Isolator Switch waterproof

3P 150A IP65 230V Locking Changeover Isolator Switch waterproof

  • 3P 150A IP65 230V Locking Changeover Isolator Switch waterproof
  • 3P 150A IP65 230V Locking Changeover Isolator Switch waterproof
3P 150A IP65 230V Locking Changeover Isolator Switch waterproof
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Model Number: UKPN5-3150
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 25 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 150A Protection Degree: IP65
Material: PC,Copper Frequency: 50/60Hz
Voltage: 230-440V Advantage: Dustproof,Waterproof,Corrosion Protection
High Light:

IEC Changeover Isolator Switch

,

80A Changeover Isolator Switch

,

4 Pole Changeover Switch

3P 150A IP65 230V Locking Changeover Isolator Switch waterproof





Product Description



This is a rotary load isolating switch used for line connection, disconnection and line maintenance or load maintenance for isolation. It includes a movable contact support part, a transmission mechanism, a static contact, and a shell,Wiring seat, base.Because it adopts a spiral transmission mechanism to realize the structure of closing and breaking of moving and static contacts, and at the same time adopts a scroll spring as an energy storage spring, it can ensure fast closing and breaking speeds. The product has good stability and high on-off capability. In addition, the product not only allows the operator to clearly see the opening and closing conditions of the moving and static contacts, but also prohibits the misoperation of the closing of unrelated personnel. It has the advantages of reasonable, ingenious design, safe and reliable, convenient and practical, and excellent performance.



 Brand Name  KRIPAL
 Model Number  UKPN0/1/3/5
 Type  Load Isolation Switch
 Number of poles  3P,4P
 Current  10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
 Frequency  50/60Hz
 Protection  IP65
 Material  PC,Copper
 Standard  IEC/EN 60947-3, AS/NZS 3947
 Identification  VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
 Warranty  One and a half years
 Advantage  Dustproof,Waterproof,Corrosion protection,Prevent the loss caused   by  long-term illumination,Safety,Low-energy,Easy setup



3P 150A IP65 230V Locking Changeover Isolator Switch waterproof 0





Reference Model



Current(A) Rated Voltage(V) Model
3P 4P
10 230-440V UKPN0-310 UKPN0-410
16 230-440V UKPN0-316 UKPN0-416
20 230-440V UKPN0-320 UKPN0-420
20 230-440V UKPN1-320 UKPN1-420
25 230-440V UKPN1-325 UKPN1-425
32 230-440V UKPN1-332 UKPN1-432
32 230-440V UKPN3-332 UKPN3-432
40 230-440V UKPN3-340 UKPN3-440
50 230-440V UKPN3-350 UKPN3-450
63 230-440V UKPN3-363 UKPN3-463
63 230-440V UKPN5-363 UKPN5-463
80 230-440V UKPN5-380 UKPN5-480
100 230-440V UKPN5-3100 UKPN5-4100
125 230-440V UKPN5-3125 UKPN5-4125
150 230-440V UKPN5-3150 UKPN5-4150





Proper installation ways



①Surface installation(insulation enclosure assembled)

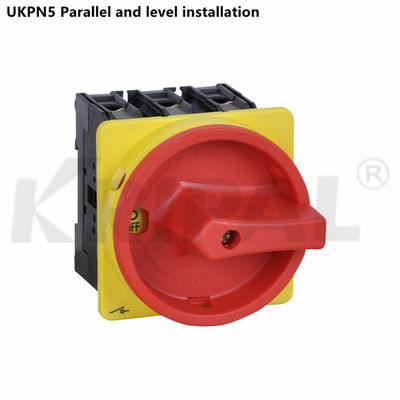

②Parallel and level installation(fix in front of it)

③Rear installation(fix at the back of it,door linkage or cover linkage)







Product Feature





1.Safe and Reliable: the terminals equipped with protective cover conform to VDE0106,to ensure the safety of finger touch

2.Flexible application:800 standard contact combinations are available,with an almost unlimited number of switch combinations.

3.Full range: according to the power capacity classification, it can provide the most economical solutions for different projects; There are many different ways to install the nameplates, which can flexibly meet the needs of specific applications.

4.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.

5.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.

6.Beautiful appearance,novel,simple,small size and function are the ideal choice among similar products.









Application

3P 150A IP65 230V Locking Changeover Isolator Switch waterproof 1









Certification



3P 150A IP65 230V Locking Changeover Isolator Switch waterproof 2









Packaging & Shipping



 Lead Time  Normally 20 days after received your fund, but mostly depends on your   quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port please   kindly advise and the extra inland transportation freight will be added   accordingly
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express
