|Place of Origin:||China|
|Certification:||VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT|
|Minimum Order Quantity:||1000 pcs|
|Packaging Details:||Each unit packed in a individual box|
|Delivery Time:||20 days and depends on ordering quantity|
|Payment Terms:||T/T, L/C, D/P|
|Supply Ability:||100000 pcs per month|
|Port:||Ningbo&Shanghi||Advantage:||Safe And Reliable，excellent Performance，easy Configuration|

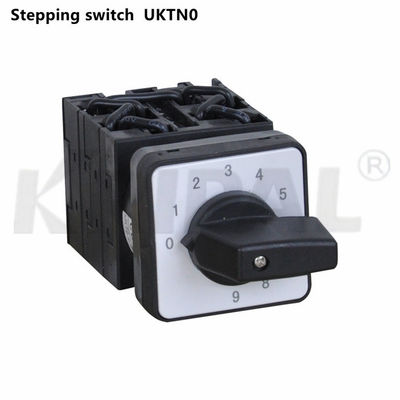

RoHS Rotary Voltage Selector Switch,
100A Rotary Voltage Selector Switch,
IP65 Waterproof Rotary Switch
UKT sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits. For breaking and closing,change-over of circuits under unfrequenly manual operation.
UKT series have 8 current ratings:10A,16A,20A,32A, 40A,63A,80A,100 A.
For breaking and closing,change-over of circuits under unfrequenly manual operation.
They were designed for multiple functions,wide variety of applications.
And the typical application are:
①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.
②Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.
③Power supply switching or load switching.
④Starting of AC motor(for single-phase power supply with capacitor)
⑤Control of stepping,suitable for any loads,with or without “O”position.
⑥Ammeter or voltmeter switching among three-phase circuits.
It is suitable for safe and reliable maintenance switch or connection of various electrical loads. At this time, it is equipped with a main switch shell. Several padlocks can be hung on the disconnected part. As a measure to ensure personal safety, the disconnected part is clearly visible and cannot be reset automatically.
Proper installation ways
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover linkage)
1.Possibility of multi-combination and safety of touch
Cam switch UKT provide 800 standard contacts combinations,their combination number is almost limitless, not only that,in the switch design process,safety and reliability in the first place,such as:equipped with the cover of the terminal in the line with VDE0106,to ensure the safety of the touch.
2.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
3.Flexible switch functions
On-off switch:It can be used reliably in lighting equipment heating equipment and motor,also can be directly switched motor(AC-3).Their high on-off ability can ensure the work reliability at frequently making and breaking.
Control switch:For controlling the current loop,it simplifies sending instructions from a central control position.For example,starting a specified process from a central control room saves time and makes the production process clear.
Packaging & Delivery
|Lead Time||Normally 20 days after received your fund, but mostly depends on your quantity|
|Leading Port||Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.|
|Trade Term||EXW, FOB, CIF as customer need|
|Payment Term||T/T 30% as deposit,and 70% before delivery.|
|Packaging||Neutral carton, or according to customer requirements|
|Shipping||By Air, by sea, by express|
1.Strong production capacity and strict quality control system;
2.Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Well-trained and experienced staffs to answer all your inquires;
4.After-sale tracking service for all of our clients;
5. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
