| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKT series |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Rated Curren: | 25A,32A,40A | Pole: | 1P,2P,3P,4P |
|---|---|---|---|
| Material: | PA、PC、Copper | Frequency: | 50/60Hz |
| Certification: | CE | Advantage: | Waterproof,Dustproof,Safety |
| High Light: | Electrical Changeover Cam Switch,IP65 PC Changeover Cam Switch,4P Selector Switch |
||
| Brand Name | KRIPAL |

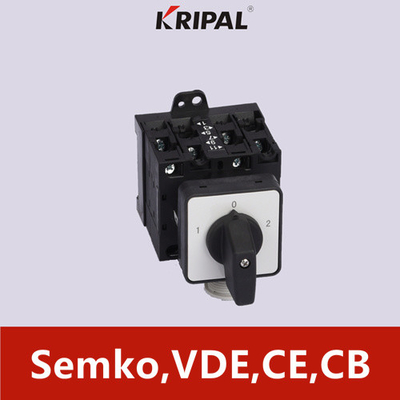

| Model Number | UKTN0/3/5 |
| Type | Cam switch |
| Number of poles | 1P,2P,3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PA,PC,Copper |
| Standard | IEC/EN 60947-3 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Advantage | special cam switch with excellent performance and easy configuration is safe and reliable to save installation time and cost. |
Proper installation ways

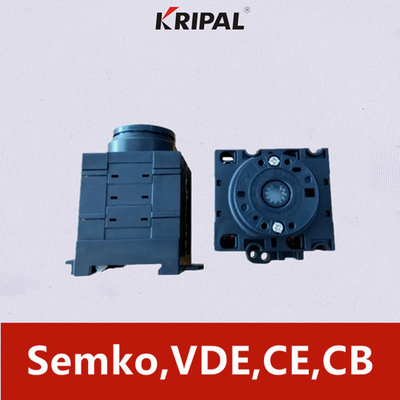

① Rear installation(fix at the back of it,door linkage or cover linkage)
② Parallel and level installation(fix in front of it)

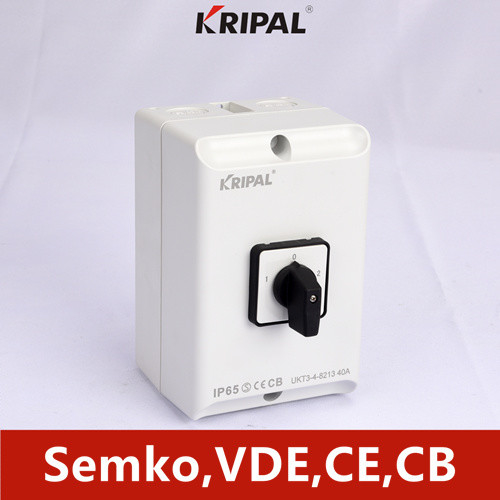

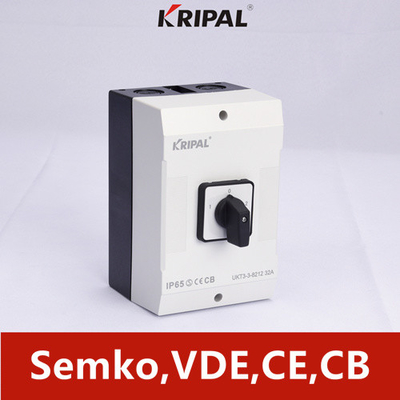

③ Surface installation(insulation enclosure assembled)
1.Possibility of multi-combination and safety of touch
UKT cam switches provide 800 standard contact combinations, and the number of their combinations is almost unlimited. Not only that, safety and reliability are the first place in the switch design process, such as: equipped with a shell on the terminal, using VDE0106 to ensure It’s safe to touch.
2.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
3.Flexible switch functions
Switch: can be reliably used in lighting equipment, heating equipment and motor, may also directly connect/disconnect the motor (AC - 3), the high ability of on/off to ensure the reliability of the frequent on and off work.
Control switch:used to control the current loop, which simplifies the process of sending commands from the central control position. For example, starting a specified process from a central control room can save time and make the production process clear.
Operating Application
① Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.
② Manual/auto selection.
③ Ammeter or voltmeter switching among three-phase circuits.
④ Starting of AC motor(for single-phase power supply with capacitor)
⑤ Control of stepping,suitable for any loads,with or without “O”position.
⑥ Power supply switching or load switching.
⑦ Motor(multi-tap winding)rev switching,speed of rotation for 2,3 or 4 steps,commutation or no commutation.
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Zhejiang kripal Electric Co., Ltd., established in 1992, now has two production bases: Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including more than 10 senior engineers, more than 30 professional technicians and more than 30 senior managers, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, have a good local brand effect, and won the title of export famous brand enterprise in Zhejiang Province. Our mission is to realize the dream of professional electrical world brand and strive to improve the company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
