3P 4P 230V IP65 Universal Changeover Switch with protective box

3P 4P 230V IP65 Universal Changeover Switch with protective box

  • 3P 4P 230V IP65 Universal Changeover Switch with protective box
  • 3P 4P 230V IP65 Universal Changeover Switch with protective box
  • 3P 4P 230V IP65 Universal Changeover Switch with protective box
  • 3P 4P 230V IP65 Universal Changeover Switch with protective box
3P 4P 230V IP65 Universal Changeover Switch with protective box
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKTN3 series
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Curren: 10A,16A,20A,32A,40A,63A,80A,100A Pole: 3P,4P
Material: PA、PC、Copper Frequency: 50/60Hz
Certification: CE Advantage: Safe And Reliable,waterproof
High Light:

4 Pole Changeover Cam Switch


32 Amp Changeover Cam Switch


Rotary Cam Changeover Switch

3P 4P 230V IP65 Universal Changeover Switch with protective box




Product Description

 Brand Name  KRIPAL
 Model Number  UKTN0/3/5
 Type  Cam switch
 Number of poles  1P,2P,3P,4P
 Current  10A,16A,20A,25A,32A,40A,50A,63A,80A,100A
 Frequency  50/60Hz
 Protection  IP65
 Material  PA,PC,Copper
 Standard  IEC/EN 60947-3
 Warranty  One and a half years
  Advantage  special cam switch with excellent performance and easy   configuration is safe and reliable to save installation time and cost.



Current(A) Rated Voltage(V) Model
3P 4P
10 230-440V UKTN0-310/8212 UKTN0-410/8213
16 230-440V UKTN0-316/8212 UKTN0-416/8213
20 230-440V UKTN0-320/8212 UKTN0-420/8213
20 230-440V UKTN3-320/8212 UKTN3-420/8213
32 230-440V UKTN3-332/8212 UKTN3-432/8213
40 230-440V UKTN3-340/8212 UKTN3-440/8213
63 230-440V UKTN5-363/8212 UKTN5-463/8213
80 230-440V UKTN5-380/8212 UKTN5-480/8213
100 230-440V UKTN5-3100/8212




Operating application

①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

②Manual/auto selection.

③Ammeter or voltmeter switching among three-phase circuits.

④Starting of AC motor(for single-phase power supply with capacitor)

⑤Control of stepping,suitable for any loads,with or without “O”position.

⑥Power supply switching or load switching.

⑦Motor(multi-tap winding)rev switching,speed of rotation for 2,3 or 4 steps,commutation or no commutation.



Proper installation ways

①Rear installation(fix at the back of it,door linkage or cover linkage)

②Parallel and level installation(fix in front of it)

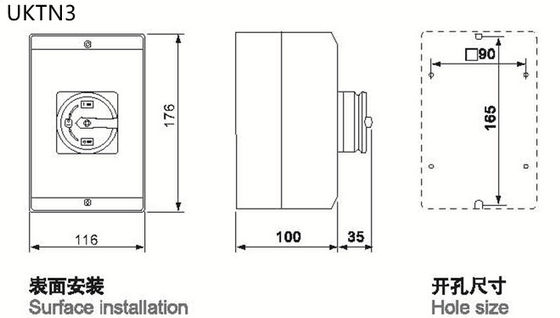

③Surface installation(insulation enclosure assembled)




Product Feature


1.Possibility of multi-combination and safety of touch

UKT cam switches provide 800 standard contact combinations, and the number of their combinations is almost unlimited. Not only that, safety and reliability are the first place in the switch design process, such as: equipped with a shell on the terminal, using VDE0106 to ensure It’s safe to touch.


2.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.


3.Flexible switch functions

Switch: can be reliably used in lighting equipment, heating equipment and motor, may also directly connect/disconnect the motor (AC - 3), the high ability of on/off to ensure the reliability of the frequent on and off work.

Control switch:used to control the current loop, which simplifies the process of sending commands from the central control position. For example, starting a specified process from a central control room can save time and make the production process clear.






The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.






Packaging & Delivery


 Lead Time Normally 20 days after received your fund, but mostly depends on your quantity
 Leading Port Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.
 Trade Term EXW, FOB, CIF as customer need
 Payment Term T/T 30% as deposit,and 70% before delivery.
 Packaging Neutral carton, or according to customer requirements
 Shipping By Air, by sea, by express









Q:Are you factory?

A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.


Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.


Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery


Q:Do you offer OEM service?

A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.


Q: How do you make our business long-term and good relationship?

A: 1.We keep good quality and competitive price to ensure our customers benefit;

     2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.





Our company



Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
