|Place of Origin:||China|
|Certification:||VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT|
|Minimum Order Quantity:||1000 pcs|
|Packaging Details:||Each unit packed in a individual box|
|Delivery Time:||20 days and depends on ordering quantity|
|Payment Terms:||T/T, L/C, D/P|
|Supply Ability:||100000 pcs per month|
|Material:||PA、PC、Copper||Advantage:||Safe And Reliable，waterproof,dustproof|

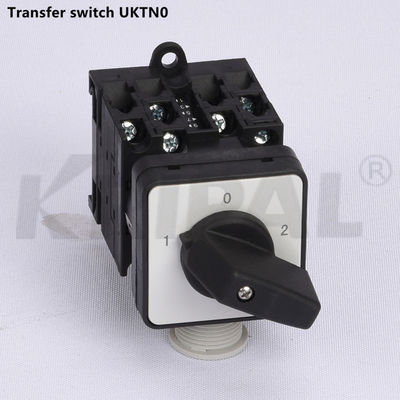

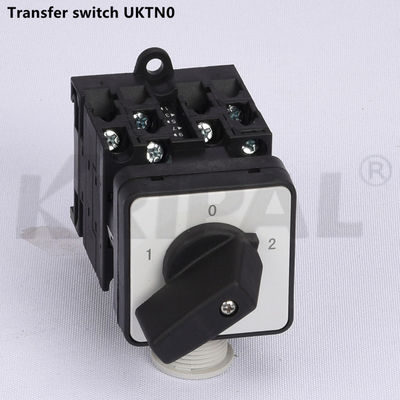

10A Single Phase Changeover Switch,
IP65 Single Phase Changeover Switch,
Single Phase Automatic Changeover Switch
UKT Series Universal changeover switch mainly used for AC 50Hz, rated voltage up to 440V and below, DC voltage up to 220V, rated current to 100A electrical circuit for manually infrequent making or breaking the circuit for the purposes of control and conversion ,can also controlling three-phase asynchronous motors and circuit directly as the purposes of master control and measurement. The products widely used, can be used as the circuit control switch, measuring equipment switches, motor control switches and the master control switch, and welding machine switch and so on.
Compliance with standards:
The changeover switch use to the main circuit switching and direct control comply with IEC/EN60947
The changeover switch use to master control comply with IEC/EN60947
①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.
②Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.
③Power supply switching or load switching.
④Starting of AC motor(for single-phase power supply with capacitor)
⑤Control of stepping,suitable for any loads,with or without “O”position.
⑥Ammeter or voltmeter switching among three-phase circuits.
Suitable for safe and reliable maintenance switch or connecting various electrical loads and equipped with the shell of the main switch at this time,you can hang a few padlocks in the breaking part,as a measure to ensure personal safety,the breaking part is clearly visible and can not be automatically reset.
Proper installation ways
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover linkage)
④Parallel and level installation for distribution cabinet(clamping on the guide rail)
1.Possibility of multi-combination and safety of touch
Cam switch UKT 800 provides standard contact combinations thereof is almost unlimited number of combinations, not only that, during the switch design, safety and reliability in the first place, such as: the terminals in the housing with VDE0106, to ensure the safety of touch.
2.Complete variety:according to the classification of power capacity, it can provide the most economical solution for different projects; the nameplate has a variety of different installation methods, which can flexibly meet the needs of specific applications.
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.
|Lead Time||Normally 20 days after received your fund, but mostly depends on your quantity|
|Leading Port||Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.|
|Trade Term||EXW, FOB, CIF as customer need|
|Payment Term||T/T 30% as deposit,and 70% before delivery.|
|Packaging||Neutral carton, or according to customer requirements|
|Shipping||By Air, by sea, by express|
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.
The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.
The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".
We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
