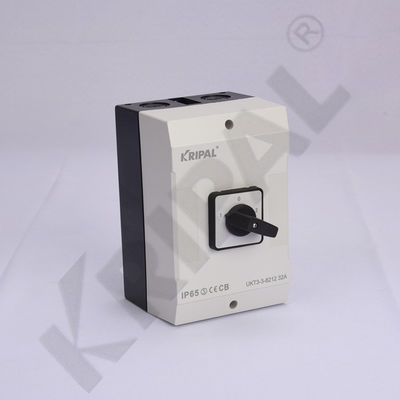

Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard

Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard

  • Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard
  • Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard
Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Model Number: UKT0-310/8212
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 10A,16A,20A,32A,40A,63A,80A,100A, Protection Degree: IP65
Pole: 3P,4P Material: PA、PC、Copper
Voltage: 230-440V Standard: IEC/EN60947

Electric Rotary Cam Changeover Switch 32A 4P IP65 IEC standard




Product Description


 Brand Name


 Model Number



 Cam switch

 Number of poles











 IEC/EN 60947-3




 One and a half years


 special cam switch with excellent performance and easy   configuration is safe and reliable to save installation time and   cost.


Electric Rotary Cam Changeover Switch 32A 4pole IP65 IEC standard 0


Current Voltage Model
3P 4P
10A 230-440V UKT0-310/8212 UKT0-410/8213
16A UKT0-316/8212 UKT0-416/8213
20A UKT0-320/8212 UKT0-420/8213
UKT3-320/8212 UKT3-420/8213
32A UKT3-332/8212 UKT3-432/8213
40A UKT3-340/8212 UKT3-440/8213
63A UKT3-363/8212 UKT3-463/8213
80A UKT3-380/8212 UKT3-480/8213
100A UKT3-3100/8212 UKT3-4100/8213




Maintenance switch


Suitable for safe and reliable maintenance switch or connecting various electrical loads and equipped with the shell of the main switch at this time,you can hang a few padlocks in the breaking part,as a measure to ensure personal safety,the breaking part is clearly visible and can not be automatically reset.


Proper installation ways


①Surface installation(insulation enclosure assembled)

②Parallel and level installation(fix in front of it)

③Rear installation(fix at the back of it,door linkage or cover linkage)

④Parallel and level installation for distribution cabinet(clamping on the guide rail)




Product Feature


1.Safety and the possibility of various combinations of touch The UKT cam switch provides 800 standard contact combinations, and the number of combinations is almost unlimited. Moreover, in the switching process design, safety and reliability is the first one, for example: a housing provided on the terminal using a touch VDE0106 ensure safety.


2.Complete variety: according to power classification, can provide the most economical solution for different projects; The nameplate can be installed in a variety of ways to flexibly meet the needs of specific applications.


3.Flexible switching function Switch: the lighting device can be reliably used, the heating device and the motor, the motor can be switched directly (AC-3), strong switching capability, ensures reliability during off frequently.


4.Control switch:For controlling the current loop,it simplifies sending instructions from a central control position.For example,starting a specified process from a central control room saves time and makes the production process clear.






Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.




Packaging & Delivery


 Lead Time  Normally 20 days after received your fund, but mostly depends on     your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port please   kindly advise and the extra inland transportation freight will be added   accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express





Our service


1.Please kindly inform us which items you are interested&the reasonable price will be provided you upon receipt of your new inquiry ASAP.


2.Answer your question detailed.


3.Solved the problem with you during using our products.


4.Samples will be offered to you for our future cooperation.


5.We cooperate with reliable logistics companies.





Our company


Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".


Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.


The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.


Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
