| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKPN5-4100 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Protection Degree: | IP65 | Rated Current: | 40A |
|---|---|---|---|
| Material: | PC、Copper | Voltage: | 230-440V |
| Frequency: | 50/60Hz | Feature: | Prevent The Loss Caused By Long-term Illumination,safety,low-energy |
| High Light: | 40A High Voltage Isolator Switch,Waterproof High Voltage Isolator Switch,OEM 4 Pole Isolator Switch |
||

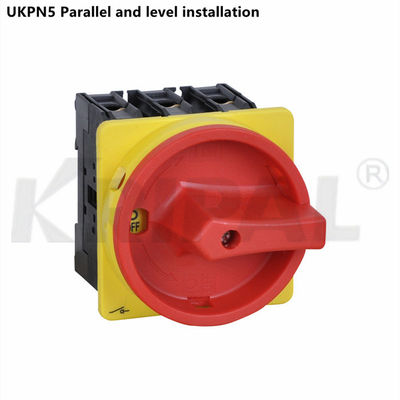

Switch is glass fiber reinforced unsaturated polyester resin housing: spring energy storage mechanism can be accelerated to achieve rapid connection and disconnection. The contact structure is parallel double breakpoints and two independent contact surfaces, and the contact is guaranteed by leaf springs. The pressure head switch can automatically determine the limit position of the switch, and there is an obvious switch mark to indicate the switch position.
Reference Model
| Current(A) | Rated Voltage(V) | Model | |
| 3P | 4P | ||
| 10 | 230-440V | UKPN0-310 | UKPN0-410 |
| 16 | 230-440V | UKPN0-316 | UKPN0-416 |
| 20 | 230-440V | UKPN0-320 | UKPN0-420 |
| 20 | 230-440V | UKPN1-320 | UKPN1-420 |
| 25 | 230-440V | UKPN1-325 | UKPN1-425 |
| 32 | 230-440V | UKPN1-332 | UKPN1-432 |
| 32 | 230-440V | UKPN3-332 | UKPN3-432 |
| 40 | 230-440V | UKPN3-340 | UKPN3-440 |
| 50 | 230-440V | UKPN3-350 | UKPN3-450 |
| 63 | 230-440V | UKPN3-363 | UKPN3-463 |
| 63 | 230-440V | UKPN5-363 | UKPN5-463 |
| 80 | 230-440V | UKPN5-380 | UKPN5-480 |
| 100 | 230-440V | UKPN5-3100 | UKPN5-4100 |
| 125 | 230-440V | UKPN5-3125 | UKPN5-4125 |
| 150 | 230-440V | UKPN5-3150 | UKPN5-4150 |
Application
Waterproof isolator switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches.
1.Safe and reliable: the terminals with protective cover conform to VDE0106, to ensure the safety of finger touch.
2.Flexible application:800 standard contact combinations are available,with an almost unlimited number of switch combinations.
3.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;there are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
4.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.
5.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.
6.Beautiful appearance,novel,simple,small size and function are the ideal choice among similar products.
|
