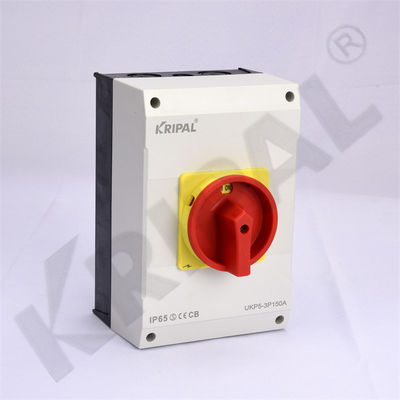

IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard

IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard

  • IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard
  • IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard
  • IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard
IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Model Number: UKP5-4125
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Protection Degree: IP65 Pole: 4P
Rated Current: 125A Material: PC,Copper
Frequency: 50/60Hz Advantage: Dustproof,Waterproof,Corrosion Protection
High Light:

125A Rotary Isolator Switch

,

IP65 4P Rotary Isolator Switch

,

IEC Isolator Switch 3 Phase

IP65 Waterproof Rotary Isolator Switch 125A 4 pole IECstandard







Product Description

 Brand Name  KRIPAL
 Model Number  UKP0/1/3/5
 Type  Load Isolation Switch
 Number of poles  3P,4P
 Current  10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
 Frequency  50/60Hz
 Protection  IP65
 Material  PC,Copper
 Standard  IEC/EN 60947-3, AS/NZS 3947
 Identification  VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
 Warranty  One and a half years
 Advantage  Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by   long-term illumination,Safety,Low-energy,Easy setup

IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard 0



Reference Model



Current(A) Rated Voltage(V) Model
3P 4P
10 230-440V UKP0-310 UKP0-410
16 230-440V UKP0-316 UKP0-416
20 230-440V UKP0-320 UKP0-420
20 230-440V UKP1-320 UKP1-420
25 230-440V UKP1-325 UKP1-425
32 230-440V UKP1-332 UKP1-432
32 230-440V UKP3-332 UKP3-432
40 230-440V UKP3-340 UKP3-440
50 230-440V UKP3-350 UKP3-450
63 230-440V UKP3-363 UKP3-463
63 230-440V UKP5-363 UKP5-463
80 230-440V UKP5-380 UKP5-480
100 230-440V UKP5-3100 UKP5-4100
125 230-440V UKP5-3125 UKP5-4125
150 230-440V UKP5-3150

UKP5-4150



Maintenance switch

Ioad Isolation switch UKP can be used as maintenance switch or main switch with enclosure,connecting kinds of electric loads.Several padlocks can be assembled in the opening position,in order to ensure personnel safety,the opening position shall be clear and can not reset automatically.

This safety switch conforms to standards IEC 60947-3 and GB14048.3



Proper installation ways

①Surface installation(insulation enclosure assembled)

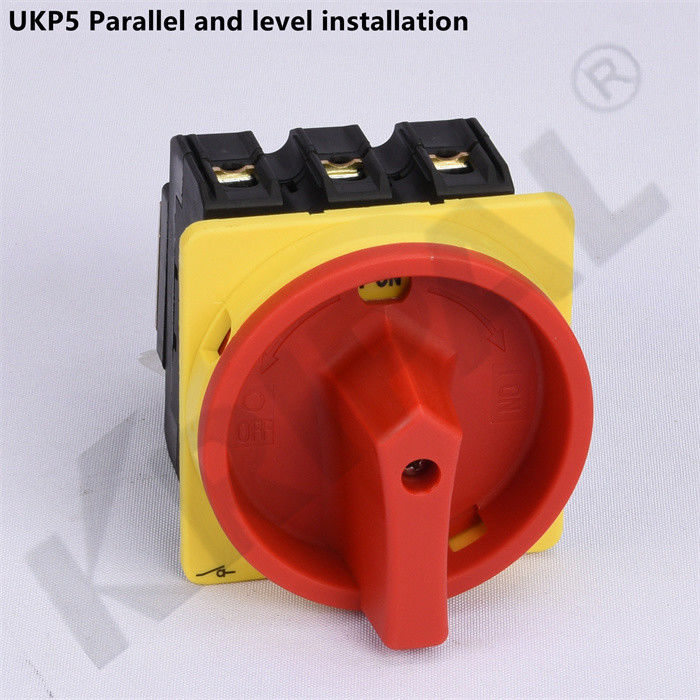

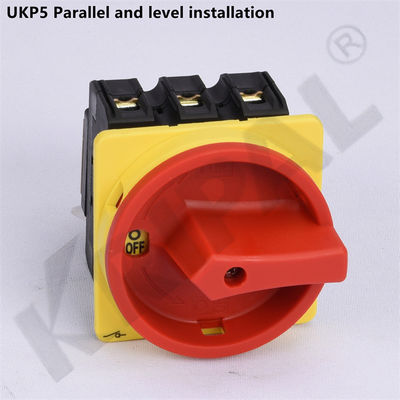

②Parallel and level installation(fix in front of it)

③Rear installation(fix at the back of it,door linkage or cover linkage)









Product Feature





Safety

The switch from the insulation disconnection contacts, Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.



Flexible installation type

Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.



Convenient installation

Built-in screws can prevent manual operation sliding, pneumatic or power tools, ensure the best performance play during the installation and speed.









Application

IP65 Waterproof Rotary Isolator Switch 125A Four Pole IEC Standard 1
