| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKP0-420 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Pole: | 4P | Rated Current: | 20A |
|---|---|---|---|
| Protection Degree: | IP65 | Frequency: | 50/60Hz |
| Material: | PC、Copper | Advantage: | Prevent The Loss Caused By Long-term Illumination,safety,low-energy |
| Highlight: | Low Voltage Rotary Control Switch,IP65 ELectric Rotary Control Switch,20A Rotary Isolator Switch |
||

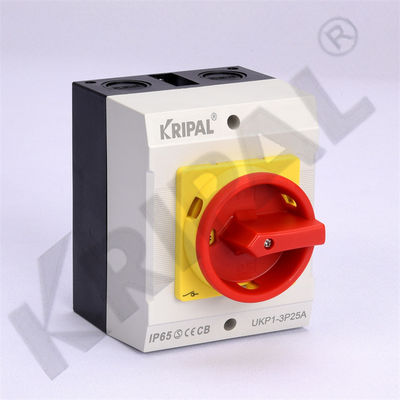

This is a rotary load isolating switch used for line connection, disconnection and line maintenance or load maintenance for isolation. It includes a movable contact support part, a transmission mechanism, a static contact, and a shell,Wiring seat, base.Because it adopts a spiral transmission mechanism to realize the structure of closing and breaking of moving and static contacts, and at the same time adopts a scroll spring as an energy storage spring, it can ensure fast closing and breaking speeds. The product has good stability and high on-off capability. In addition, the product not only allows the operator to clearly see the opening and closing conditions of the moving and static contacts, but also prohibits the misoperation of the closing of unrelated personnel. It has the advantages of reasonable, ingenious design, safe and reliable, convenient and practical, and excellent performance.
Specification
| Rated current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| No. of poles | 3P,4P |
| Voltage | 230-440V |
| Protection degree | IP65 |
| Frequency | 50/60Hz |
| Standard | IEC/EN60947 |
| Material | PC, Copper |
| Warranty | One and a half years |
1.Flexible application: 800 kinds of standard contact combinations can be provided, and the number of switch combinations is almost unlimited.
2.Safe and Reliable: the terminals equipped with protective cover conform to VDE0106,to ensure the safety of finger touch.
3.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;there are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
4.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.
5.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
1.Please kindly inform us which items you are interested&the reasonable price will be provided you upon receipt of your new inquiry ASAP.
2.Answer your question detailed.
3.Solved the problem with you during using our products.
4.Samples will be offered to you for our future cooperation.
5.We cooperate with reliable logistics companies.
