| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKP5-4125 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Rated Current: | 63A,80A,100A,125A,150A | Material: | PC,Copper |
|---|---|---|---|
| Protection Degree: | IP65 | Pole: | 2P,3P,4P,5P |
| Frequency: | 50/60Hz | Warranty: | One And A Half Years |
| High Light: | Waterproof IP65 Isolator Switch,150A IP65 Isolator Switch,3P Rotary Isolator Switch |
||

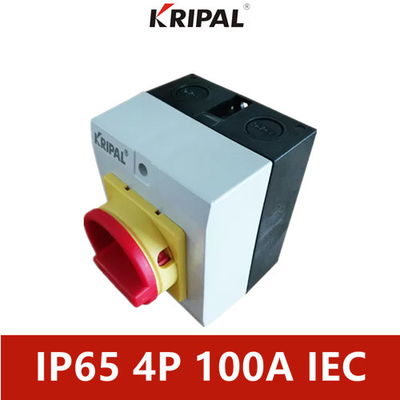

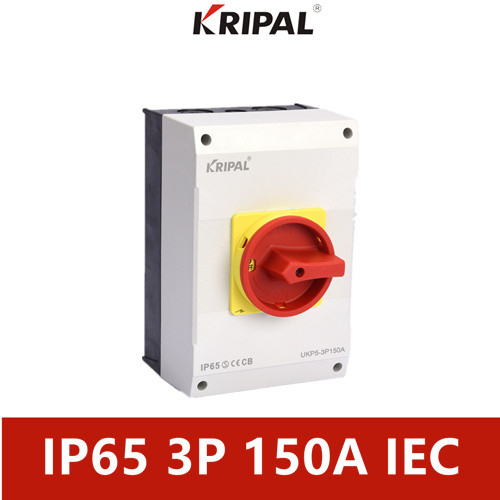

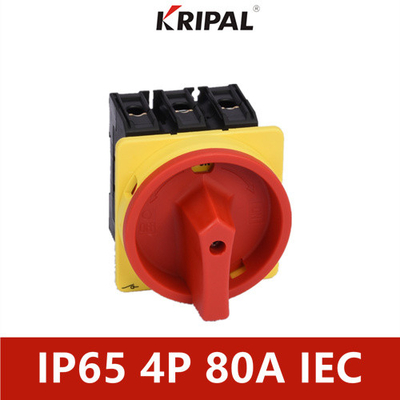

This is a rotary load isolating switch used for line connection, disconnection and line maintenance or load maintenance for isolation. It includes a movable contact support part, a transmission mechanism, a static contact, and a shell,Wiring seat, base.Because it adopts a spiral transmission mechanism to realize the structure of closing and breaking of moving and static contacts, and at the same time adopts a scroll spring as an energy storage spring, it can ensure fast closing and breaking speeds. The product has good stability and high on-off capability. In addition, the product not only allows the operator to clearly see the opening and closing conditions of the moving and static contacts, but also prohibits the misoperation of the closing of unrelated personnel. It has the advantages of reasonable, ingenious design, safe and reliable, convenient and practical, and excellent performance.
| Brand Name | KRIPAL |
| Model Number | UKP0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 2P,3P,4P,5P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Advantage | Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by long-term illumination,Safety,Low- energy,Easy setup. |
1.Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
2.Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting.
Main switch are ON--OFF switches to isolated the power to a particular area of operation.According to ICE/EN6024 or VDE0113,all electrical equipments of industrial machines must be equipped with a main switch.This must permit disconnection of all the elecrical equipment during cleaning,maintenance and repair work,and other extended periods when is stationary.Main switch can be used for switching and controlling main circuits,motor ON-OFF and other special application circuits,such as illumination equipments,heating equipments and motors,Their high on-off ability ensure the work reliability of frequently making and breaking.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4. Samples will be offered to you for our future cooperation.
5.Quality assurance both for our products and service for after-sales.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
