| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKP series |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Protection Degree: | IP65 | Voltage: | 230-440V |
|---|---|---|---|
| Pole: | 2P,3P,4P,5P | Material: | PC、Copper |
| Frequency: | 50/60Hz | Standard: | IEC/EN60947，AS/NZS 3123:2005 |
| High Light: | IP65 Electrical Isolator Switch,5 Pole Electrical Isolator Switch,Power Plant Rotary Isolator Switch |
||

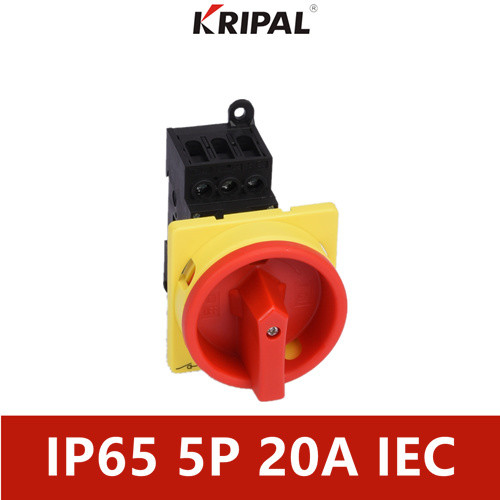

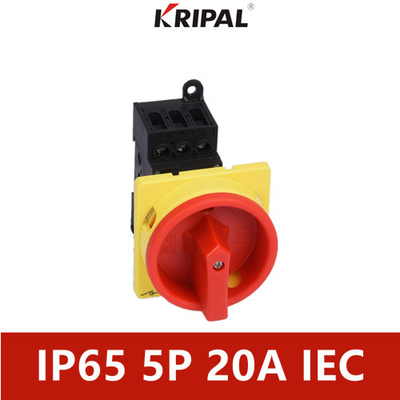

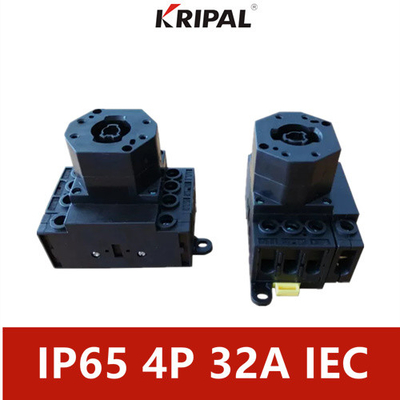

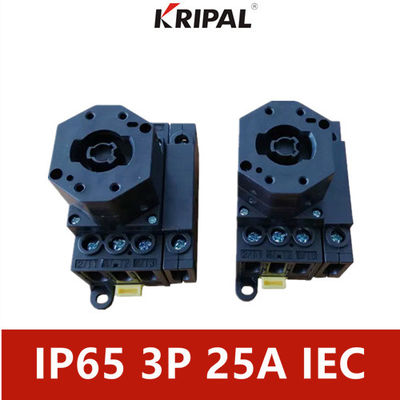

KRIPAL’s rotary switches applied to rated working current up to 100A and have the same design aspopular Line. It suitable to control: air-conditioner, water pump and ventilating equipments and AC motor with small power. There are six current ratings: 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A.Alsocando 2Pole,3Pole,4Pole,5Pole.They all comply with IEC 60947-3.
| Brand Name | KRIPAL |
| Model Number | UKP0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 2P,3P,4P,5P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Advantage | Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by long-term illumination,Safety,Low-energy,Easy setup |
Safety
The switch from the insulation disconnection contacts, Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.
Flexible installation type
Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.
Convenient installation
Built-in screws can prevent manual operation sliding, pneumatic or power tools, ensure the best performance play during the installation and speed.
The main switch is an ON-OFF switch, which is used to isolate the power supply of a specific operating area. According to ICE/EN6024 or VDE0113, all electrical equipment of industrial machines must be equipped with main switches. This must allow the disconnection of all electrical equipment during cleaning, maintenance and repair work, and other long periods of standstill. The main switch can be used to switch and control the main circuit, the on-off of the motor, and other special application circuits, such as lighting equipment, heating equipment and motors. Their high on-off capabilities ensure the reliability of frequent on-off operations.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
1. Strong production capacity and strict quality control system;
2. Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Provide after-sales tracking services for all customers;
4. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory;
5. Samples will be offered to you for our future cooperation.
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
