| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKF2 series |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Pole: | 1P,2P,3P,4P | Rated Current: | 20A,35A,63A |
|---|---|---|---|
| Material: | PC、Copper、 | Standard: | IEC/EN60947,AS/NZS3123:2005 |
| Frequency: | 50/60Hz | Feature: | Dustproof,waterproof,corrosion Protection |
Product Description
| Brand Name | KRIPAL |
| Model Number | UKF2 |

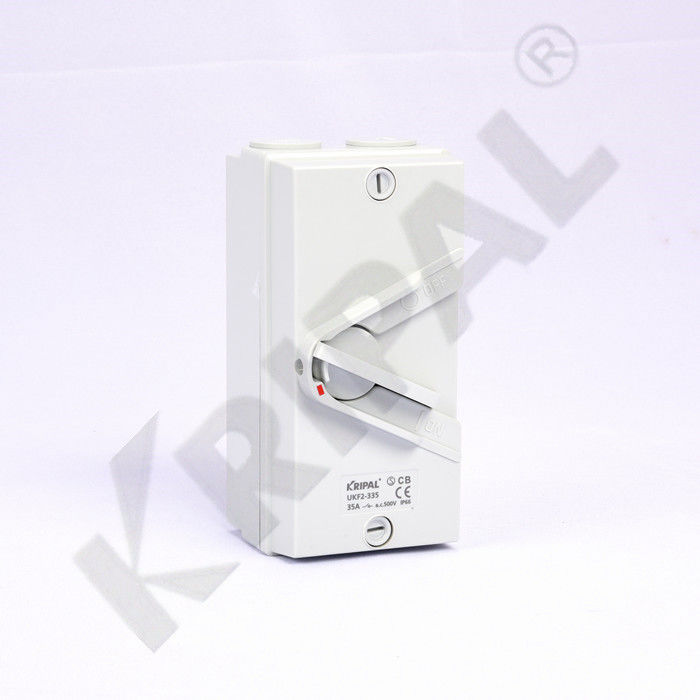

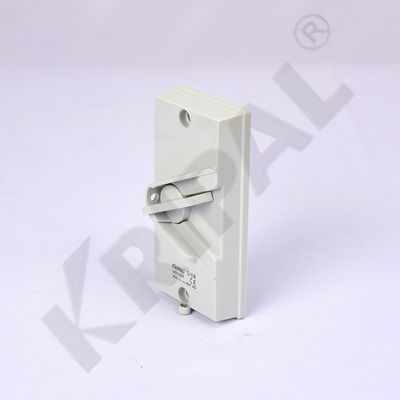

| Type | Weatherproof Isolator Switch |
| Number of poles | 1P,2P,3P,4P |
| Current | 20A,35A,63A |
| Frequency | 50/60Hz |
| Protection | IP66 |
| Material | PC,Copper |
| Standard | IEC/EN60947,AS/NZS 3123:2005 |
| Identification | SAA,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Color | Gray&White |
| Warranty | One and a half years |
| Current(A) | Rated Voltage(V) | Pole(P) | Type |
| 20 | 250 | 1 | UKF2-120 |
| 440 | 2 | UKF2-220 | |
| 3 | UKF2-320 | ||
| 4 | UKF2-420 | ||
| 35 | 250 | 1 | UKF2-135 |
| 440 | 2 | UKF2-235 | |
| 3 | UKF2-335 | ||
| 4 | UKF2-435 | ||
| 63 | 250 | 1 | UKF2-163 |
| 440 | 2 | UKF2-263 | |
| 3 | UKF2-363 | ||
| 4 | UKF2-463 |

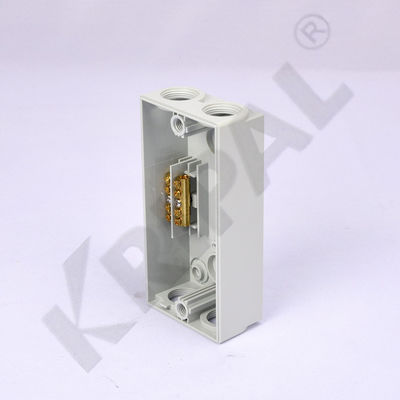

1. The installation and the neutral point grounding pole with double clamp screw, can effectively will all fixed to the junction box, cable and reliable clamping, prevent the liquid leakage
2. The security is higher, the switch installed on the metal structure with insulation cap, insulation cap on base mounting screws, to prevent contact with electric cable.
3. Each device is equipped with threaded conduit connector and threaded reducing pipe for connecting 25mm or 20mm conduit and nut; Nuts must be installed to ensure IP rating.
4. Impact base and lid in almost all the installation conditions can withstand the impact between the base and lid, base and separated by a weather resistance and waterproof seal between the lid.
5. For safety, use 7mm diameter holes in heavily machined cast baffles to lock the lever during maintenance or overhaul. The deep mounting baffle is secured to prevent accidental switch operation of the operating handle.
6. Appearance color: The standard color of the switch is gray and white.
The products are widely used in smelting, chemical industry, power and electronics, airport, railway, construction site, mine, quarry, water supply and drainage treatment plant, automobile manufacturing, port, wharf, shopping mall, hotel and other places. The 'open' and 'close' positions are clearly marked and padlock holes are provided When used as maintenance switch and safety switch, padlock can be installed on the "closed" part; If you want to lock in the 'open' position, you only need to lock one hole; So as to ensure the safety of users.
Q:Are your manufacturer and do you have experience?
A:We are manufacturer with more than 30 years experience.
Q:How many employees do you have?
A:We have more than 500 employees now,with in-house R&D teem.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:Do you accept OEM and ODM business?
A:We do,for OEM service please send us your authorization, also your quantity should large enough.
Q: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.
The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.
The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".
We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
