| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Model Number: | UKPN1-325 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Rated Curren: | 20A,25A,32A | Material: | PC,Copper |
|---|---|---|---|
| Protection Degree: | IP65 | Frequency: | 50/60Hz |
| Application: | Control Motor | Feature: | Dustproof,Waterproof,Easy Setup |
| High Light: | IP65 Maintenance Switch,3P Maintenance Switch,25A 440V Rotary Isolator Switch |
||
| Brand Name | KRIPAL |
| Model Number | UKPN0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 2P,3P,4P,5P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Advantage | Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by long-term illumination,Safety,Low-energy,Easy setup. |
① Surface installation(insulation enclosure assembled)
② Parallel and level installation(fix in front of it)
③ Rear installation(fix at the back of it,door linkage or cover linkage)
1.Safe and reliable: terminals equipped with protective cover, VDE0106 standard, ensure the security of the fingers.
2. It has a variety of uses in industrial machinery and equipment. When used as a maintenance and insurance switch, for example, can be installed in part O 3 padlocks, in order to ensure the personal safety of users.
3. The application of flexible: 800 standard contact combination, almost unlimited combination switch.
4.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.
5.Beautiful appearance,novel,simple,small size and function are the ideal choice among similar products.

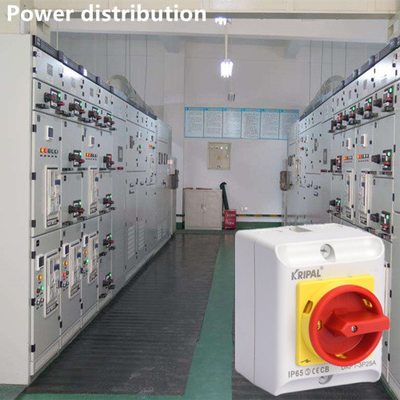

Main switch are ON--OFF switches to isolated the power to a particular area of operation.According to ICE/EN6024 or VDE0113,all electrical equipments of industrial machines must be equipped with a main switch.This must permit disconnection of all the elecrical equipment during cleaning,maintenance and repair work,and other extended periods when is stationary.Main switch can be used for switching and controlling main circuits,motor ON-OFF and other special application circuits,such as illumination equipments,heating equipments and motors,Their high on-off ability ensure the work reliability of frequently making and breaking.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:What is your terms of delivery?
A: EXW, FOB, CIF.
Q:How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
