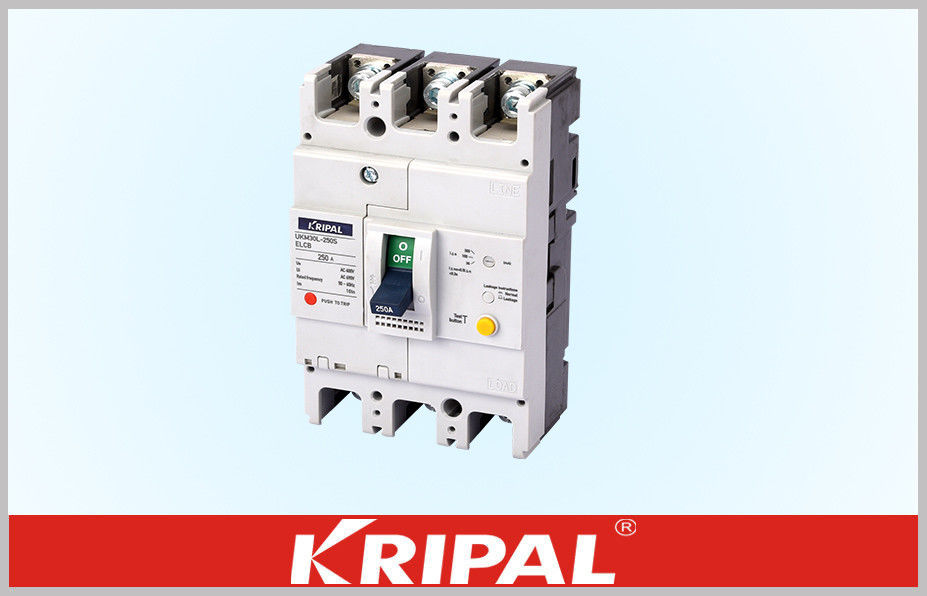

OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity

OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity

    • OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity
  • OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKM30L-250S 3P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Current Range: 100,125,150,175,200,215,250 Poles Available: 3P / 4P
    Rated Working Voltage: 400VAC Rated Insulation Voltage: 690VAC
    Protection: Earth Leakage Breaking Capacity: 50/25
    Type: 30、100、300 MA Adjustable Standard: IEC60947
    High Light:

    Earth Leakage Circuit Breaker

    ,

    Residential Circuit Breakers



    OEM /ODM UKM30L-250S 3P Latest Molded Case Circuit Breaker Earth Leakage standard/ high/ ultimate breaking capacity





    Company Introduction

    Established in 1987, Zhejiang KRIPAL Electric Co.,Ltd(China) is one of the leading suppliers and manufacturers specializing in various kinds of switches, sockets, plugs,MCCB,MCB, contactors, relays as well as electrical accessories.
    With 2 factories seperately located in Wenzhou and Taizhou more than 600 employees. A quality control system ensuring rigorous quality controlling for the import of raw materials through to finished products, and to after-sales customer service. KRIPAL has manufactured mang customized brand products which are deeply welcomed and trusted for perfect appearances, excellent performance, reliable quality and good after-sales service.


    OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity 0







    Description:



    UKM30L Series Earth Leakage Circuit Breaker is developed with hi-tech in 1990S with completed protection functions, high performance, smart dimension which is the ideal replacements for the olds.



    The ELCB is applied in the power system of AC 50Hz, rated voltage up to 400V and rated current up to 400A, for power distribution and protecting Power system from overload, short circuit, faults damage etc.  it also can be used to control infrequent operation.



    The rated residual operating current In and the maximum breaking time can be adjusted on site according to practical condition.



    The leakage protection module still can work normally when the phase voltage reduce to 50V. It has the same overall size with the UKM30L series circuit breakers, which make the installation more exchangeable.



    The circuit breakers comply with the demands of the IEC60947 standards.





    Specifications:





    Frame rated current 250
    Model UKM30L-250S
    Ratedcurrent In(A) 100,125,150,175,200,225,250
    Poles 3 / 4
    Ratedvoltage Ui(V) AC690.50HZ
    Ratedvoltage Ue(V) AC400.50HZ
    Rated limit short/service breaking capitily Icu/Ics(KA) 50/25
    Rated Actuation residual current 30,100,300,500mA
    Ratedresidual non-operattion current 1/2In
    Rated residual short-circuit making & breaking capacity 1/4Icu
    Operation charateristic (times) ON / OFF 1000 / 7000





    Wiring:


    Wiring of the  circuit breaker cannot be in adverse direction that means power supply line must be connected to terminal 1, 3 and 5, and the load line connected to terminal 2, 4 and 6.







    Figure of UKM30L-250 Overcurrent Protection



    OEM ODM Earth Leakage Circuit Breaker Standard / High / Ultimate Breaking Capacity 1







    Our service:



    1. Samples: provided freely



    2. Package: packed in standard cartons, special packing is negotiable



    3. Warranty: 2 years at least



    4. Delivery: within 30days after received the deposit.



    5. OEM, ODM is acceptable



    6. We can help you with any of your idea to design and put it into production.



    7. Provide help for building factories, such as: spare parts, technical questions, financial matter,

        management problem, approach of sales...
