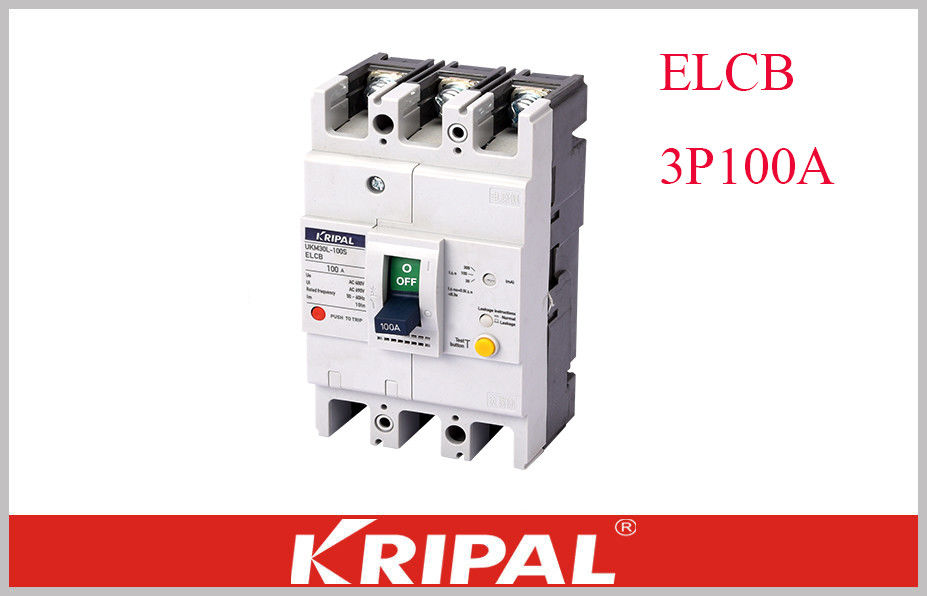

3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type

3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type

    • 3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type
  • 3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKM30L-100S 3P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Current Range: 100A Poles Available: 3P
    Rated Working Voltage: 400VAC Rated Insulation Voltage: 690VAC
    Protection: Earth Leakage Breaking Capacity: 50/25
    Type: Non Delay Type
    High Light:

    Earth Leakage Circuit Breaker

    ,

    Residential Circuit Breakers



    KRIPAL UKM30L-100S 3P CE Leakage / Residual Current Molded Case Circuit Breaker Earth Leakage ELCB Non delay type





    Company Introduction


    Established in 1987, Zhejiang KRIPAL Electric Co.,Ltd(China) is one of the leading suppliers and manufacturers specializing in various kinds of switches, sockets, plugs,MCCB,MCB, contactors, relays as well as electrical accessories.
    With 2 factories seperately located in Wenzhou and Taizhou more than 600 employees. A quality control system ensuring rigorous quality controlling for the import of raw materials through to finished products, and to after-sales customer service. KRIPAL has manufactured mang customized brand products which are deeply welcomed and trusted for perfect appearances, excellent performance, reliable quality and good after-sales service.





    3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type 0





    General



    UKM30L Series Earth Leakage Circuit Breaker is developed with hi-tech in 1990S with completed protection functions, high performance, smart dimension which is the ideal replacements for the olds.



    The main purpose of earth leakage protectors is to prevent injury to humans and animals due to electric shock.





    Description:



    UKM30L series residual Current Circuit Breaker (herein after called circuit breaker) is applied for the power distribution network of AC 50Hz,rated current 800A.



    The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault.It can be used to distribute electric power and protect power equipment against overload and short circuit.The circuit breaker can change the circuit and start motor infrequently.



    The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation,the circuit breaker can be customized alarm function and no tripping





    3P CE Leakage / Residual Current Molded Case Switch Earth Leakage ELCB Non Delay Type 1



    Specifications:



    Frame rated current 100
    Model UKM30L-100S
    Rated current In(A) 16,25,32,40,50,63,75,100
    Poles 3 /4
    Ratedvoltage Ui(V) AC690.50HZ
    Ratedvoltage Ue(V) AC400.50HZ
    Rated limit short/service breaking capitily Icu/Ics(KA) 50/25
    Rated Actuation residual current (Non delay type) 30,100,300mA (Adjustable)
    Rated residual non-operattion current 1/2In
    Rated residual short-circuit making & breaking capacity 1/4Icu
    Operation charateristic (times) ON / OFF 1500 / 8500





    Characteristics:



    1.  Compact size, light weight and attractive frame

    2.  Adapts new material, new craftwork and high insulation capacity

    3.  Advanced structure

    4.  Short arc-overdistance (some of the “ 0” arc-over distance)

    5.  Shake proof..
