Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating

China Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating supplier
Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating supplier Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating supplier

Large Image :  Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE, Semko
Model Number: UKPN5

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product: Rotary Isolator Switch Cable Access: M20/25 Knockouts
Protection Grade: IP65 Red/Yellow Rings: Lockable
Enclosure: Brand-new PC Earth Terminals: Included



Weatherproof 100 Amp Disconnect Switch with 1NO+1NC For Rotary Isolating





KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.





Description:



1. These rotary isolator switches are used to switch power to commercial / light industrial applications.



2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using

     the yellow surrounding ring and padlock.



3. Easy cable access via M20/25 knockouts



4. The screws are captive retained and would not drop off when the lid is turned over.



5. Earth terminal is included



6. Enclosure: brand-new PC, White



7. Standard: manufactured and tested as IEC 60947-3





Specifications:





No.

Tech Parameters

requirement

1.

Rated voltage

below 440V

2.

rated current

10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

3.

frequency

AC50HZ

4.

No. of poles

2P,3P,4P,5P

5.

No. of layers

make as required with circuit diagram

6.

panel size

64*64mm

7.

color of handle

Black/red





Optional:



a. Netural contacts

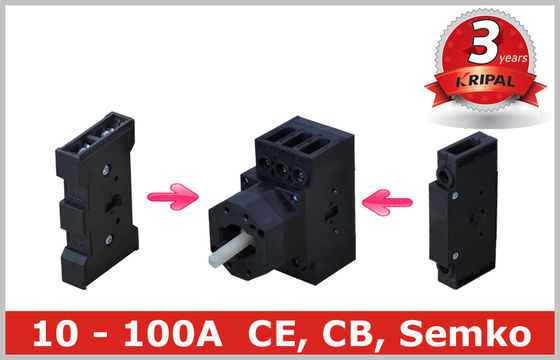

b. 1NO+1NC module





Applications:



Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches





Working condition:

1. Recommended ambient temperature -5oC~42oC



2. Installation altitude: ≤ 2000m



3. Relative atmosphere humidity do not exceed 50% when the highest temperature is +40°C. At lower temperature, higher humidity can be allowed.

For example, humidity can reach 90% when temperature is 20°C. Special measures should be taken when the congealed dew appears on the surface caused by the change of temperature.





Declaration:



KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.



Why not get goods from us directly?
