Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | SAA |
Model Number: | 56P520 |
Minimum Order Quantity: | 500 pcs |
---|---|
Price: | negotiable |

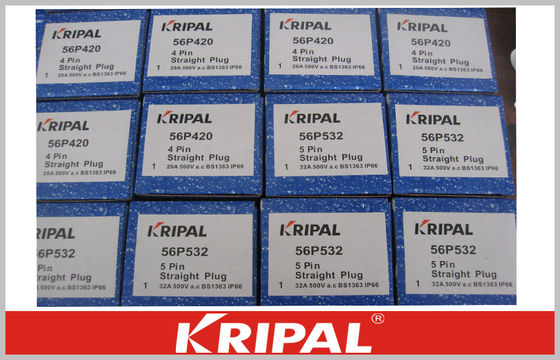

Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 pcs per month |
Type: | Straight Plug | Materias: | PC, Copper |
---|---|---|---|
Pins: | 5 Pin | Ampere: | 20A |
Waterproof: | IP66 | Dustproof: | IP66 |
Highlight: | Waterproof Electrical Plugs,Outdoor Plug |
Outdoor 5 Pin 20 Ampere Ip66 Australian Power Plug Extension Socket , SAA Certified
Description:
The 56 Series IP66 plugs are available in either straight or angled options and feature a wide lock ring
to make it easier to unscrew from sockets.
When the ip66 plug is not being used, a protective cap is available to keep the plug pins free from foreign particles and to reduce tracking between the pins. The plugs can also be adapted with flexible cable
and 56CSC extension socket and connectors to create robust extension leads.
Specifications:
1. Austrialian Standard to suit the Australian and New Zealand Market
2. All plugs have impact Resistant, UV stabilise mouldings.
3. IP66 rated units feature a hose proof cap which maintains the international protection rating when the accessory is not being used
4. Resistance to severe weather and ageing .
5. Good space stability and accuracy .
6. Effectively prevent power outages and leakage
Straight IP66 Plug 56P | 416 | 420 | 432 | 435 | 440 | 450 | 516 | 520 | 532 | 535 | 540 | 550 |
Angled IP66 plug 56PA | 416 | 420 | 432 | 435 | 440 | 450 | 516 | 520 | 532 | 535 | 540 | 550 |
Rated Operational Voltage Ue(-50Hz) V | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Rated Thermal Current A | 16 | 20 | 32 | 35 | 40 | 50 | 16 | 20 | 32 | 35 | 40 | 50 |
Pins | 4 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
Cable Entry Diameter | 7-16 | 7-16 | 10-27 | 10-27 | 10-27 | 10-27 | 7-16 | 6-16 | 10-27 | 10-27 | 10-27 | 10-27 |
Terminal Capacity mm | 1-6 | 1-6 | 2.5-16 | 2.5-16 | 2.5-16 | 4-6 | 1-6 | 1-6 | 2.5-16 | 2.5-16 | 2.5-16 | 4-6 |
Features:
1. Have a transparent body to allow visual inspection of connections and easy location into socket
outlet/ extention coupler
2. Have wide locking ring with inbuilt rubber gasket to ensure IP66 rating and compliance to AS/NZS
standard
3. Have captive stainless steel combination head screws
4. Have internal clamp to prevent cable being pulled out or twisted
5. The ‘snap-shut’ body design means screw-less assembly, and an all-in-one cord clamp and
cable means no need to remove the cable nut. The provision of two cable seals provides flexibility
for small and large cables.
6. Tested for protection against ingress of water and dust to IP66
7. Manufactured from super tough chemical and corrosion resistant plastic
8. Temperature -25°C to +80°C
9. Unique modern design with gland nut and rubber seals for both 1.5mm² and 2.5mm² cable
Application:
1, 56P series industrial waterproof plug is used to power connectior to ensure the safety of
maintenance work.
2, The IP66 plug has perfect protection to your safe for using of electricity in the rain, dust,
freezing, high temperature, strong ultraviolet radiation and other harsh outdoor
environments demand.
3, It is mainly applied in metallurgy, chemical industry, power facilities, electronics, railways,
construction sites, airports, mines, mining field, drainage treatment plants and ports,
terminals, shopping malls, hotels and other types of industrial and mining enterprises.
Our advantage:
1. We are professional in making precision plastic mould with high quality and manufactory plastic products.
2. We can provide high-quality of new product R & D, designing, mould forming and making and processing of plastic products.
3. We can tailor various kinds of Mould for each customer as per their requirements. The quotation can be made based on drawings or samples provided by the customers. Our products are both excellent in quality and reasonable in price.
4. There are a variety of imported equipments, such as processing center, huge engraving machine and electric spark
5. We also have punctual delivery time, usually 25 days
6. We are committed to providing the best quality and service for customers all long. we enjoyed high reputation among our clients at home and abroad.
