| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | 56CV series |
| Minimum Order Quantity: | 500 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pcs per month |
| Color: | RAL 7035 | Enclosure: | Brand-new PC |
|---|---|---|---|
| Plastic Parts Inside: | Nylon | Current Range: | 16A 32A |
| Protection: | IP66 | Available Poles: | 3 Pole 4 Pole 5pole |
| High Light: | industrial receptacles,industrial electrical outlets |
||

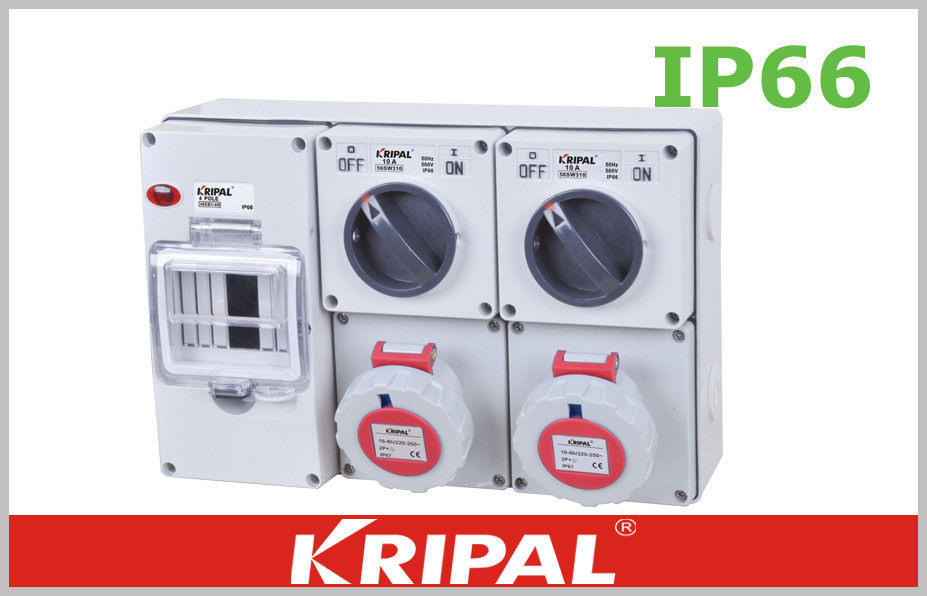

Hoseproof Industrial Power Socket IP66 Pin And Sleeve Connectors
Industrial switchgear, being one of the most important components of industry, has to be tough, safe, and able to take hard knocks and give reliable performance under many adverse conditions.
Dust Resistant, Hoseproof and UV Resistant:
Because its tough enclosure casing is dust resistant, hoseproof and UV resistant, the
56 Series is suitable for heavy industrial environments.
The aesthetic appearance of the 56 Series makes it the ideal choice for installation in commercial facilities such as television studios, shopping centres and warehouses.
What’s more, 56 Series products are just as acceptable alongside a public or domestic
swimming pool.
Specifications:
|
Products |
56CV series Combination Switched Socket |
|
Environment Protection |
Waterproof, Dustproof, UV Resistant |
|
IP Grade |
IP66 |
|
Color |
RAL 7035 |
|
Ampere Raged |
16A 32A |
|
Working Voltage |
230V 400V |
|
Circuit Protection |
Fuse as RCD(Overload, Earth Leakage) |
|
Configurations |
Customized |
|
Working Status |
Indicator by neon light |
Wiring:
1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.
Designed to Mix and Match:
What suits one industry might not be the perfect match for another. That’s why the 56 Series was specifically designed to mix and match. There is an extensive choice of modules available, including switches, sockets, photo electrical cells and residual current devices.
KRIPAL 56CV series Combination Switch Sokcet range in size from 1 to 16 gang.This allows assemblies to be customised - from a simple switchstation to a large electrical control panel.
Application:
1, 56CV series weatherproof Switch socket is used to isolate to ensure the safety of maintenance work.
2, The industrial switch has perfect protection to your safe for using of electricity in the rain, dust, freezing, high temperature, strong ultraviolet radiation and other harsh outdoor environments demand.
3, It is suitable for any outdoor application conditions
4, It can be panel mounting on surface.
KRIPAL Main products:
Rotary isolator switch, changeover switch, IP55 waterproof switch socket, IP66 weatherproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, mold case circuit breaker, AC contactor, thermal overload relay, industrial power distribution box and etc.
