Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | CE |
Model Number: | UKS series |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | negotiable |
Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 pcs per month |
Purpose: | Industrial | Currenty: | 16A,32A |
---|---|---|---|
Voltage: | 220V-250V, 380V-415V | Protection Grade: | IP44, IP67 |
Plastic Materials: | Nylon, Rubbber | Metal: | Copper |
High Light: | industrial receptacles,industrial electrical outlets |

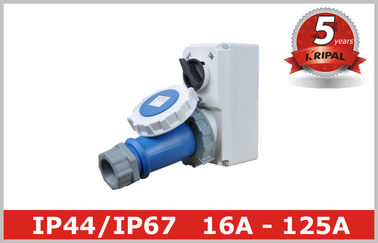

Three phase IP67 Interlocked Switch Socket Industrial Receptacles
After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.
Description:
> RAL 7035 grey, housing made of insulating material;
> Flame and fire resistance, the base overcome the glow wire test at 850 centigrade;
> Mechanical interlock enabling the switch to be operated only when it's plug-in,
the plug can only be pulled out when the switch is on "O";
> Switch with handle which can be padlocked from outside in position "O" and "I";
> Switch is in compliance with IEC 60947-3, usable AC 21,AC 22, AC 23;
> Degree of protection is IP44,IP67;
> Mechanical protection degree is IK8.
Specifications:
Product | Mechanical Interlocked Switch Socket |
Rated Ampere | 16A, 32A |
No. of poles | 2P+E, 3P+E, 3P+N+E |
Voltage | 230V, 400V |
Protection degree | IP44, IP67 |
Power type | Single Phase, Three phase |
Conductor cross-sectional area (mm2) | 1.5-4(16A); 2.5-10(32A) |
Material | NYLON PA6, PC, copper |
Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Construction Structure:
Mechanical interlock device inside
Articulated cover prevent dust and water
Compact design, cable entry hole from side or bottom
Quality brass one-piece, high conductivity
Semko certified UKP series switchgear mounted in box
Full range of Industrial Plug Socket as follows:
Protection | IP44/IP67 |
Current | 16A, 32A, 63A, 125A, 250A, 420A |
Pins | 2P+E, 3P+E, 3P+N+E |
Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
PLUG & SOCKET | Low voltage plug socket <50V |
Industrial plug, industrial socket | |
Wall mounted socket, wall mounted plug | |
Panel mounted socket, panel mounted plug | |
Interlocked switched socket | |
BOX | Industrial portable socket box |
Industrial plastic socket box | |
Power maintenance box (stainless) | |
Power maintenance box (plastic) | |
Industrial lighting box (plastic) | |
Industrial lighting box (metal) | |
Distribution box for exhibition box | |
T. V / Film power distribution box | |
Distribution box with power and compress air outlet | |
Accessories | Cap for 16A, 32A, 63A, 125A plug |
About us:
1. Certificates: CE, CB, Semko, SAA, TUV, UL, KEMA, ISO9001:2008
2. We have 27 years of manufacturing and 17 years of exporting experience
3. We have completely sales service system, ensures every detail is smooth
4. We have new designed products each year by our R&D Department
5. Perfect testing system ensures each product is qualified
6. We have a good reputation in UK, Spain, Germany, Australian, UAE, Turkey, Brazil, Colombia,
HK, Singapore, Malaysia and other areas
